Adapta-Stack Electrochemical Cell
Regular price
$355.00
Sale price
Regular price
Shipping calculated at checkout.
The Adapta-Stack Electrochemical Cell is a dismantlable stack that allows users to input their own MEAs for testing! Independent reactant flow on each side of the MEA allows this setup to be used in many different configurations. Stack Contents Include: Plastic Endplates Anode configuration on...
Key specs
| Item number | F117 |
|---|---|
| Technology | PEM |
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description

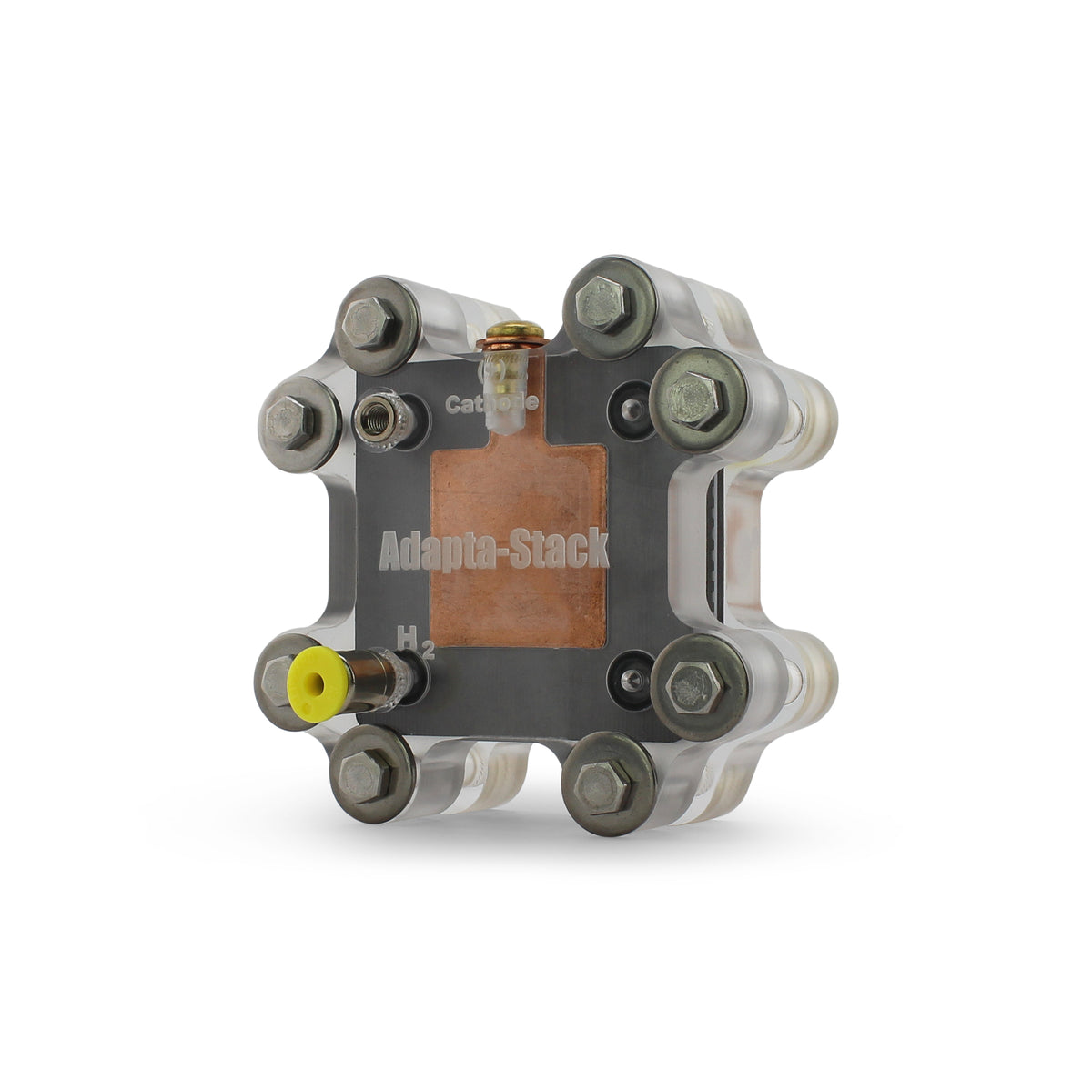

The Adapta-Stack Electrochemical Cell is a dismantlable stack that allows users to input their own MEAs for testing! Independent reactant flow on each side of the MEA allows this setup to be used in many different configurations.

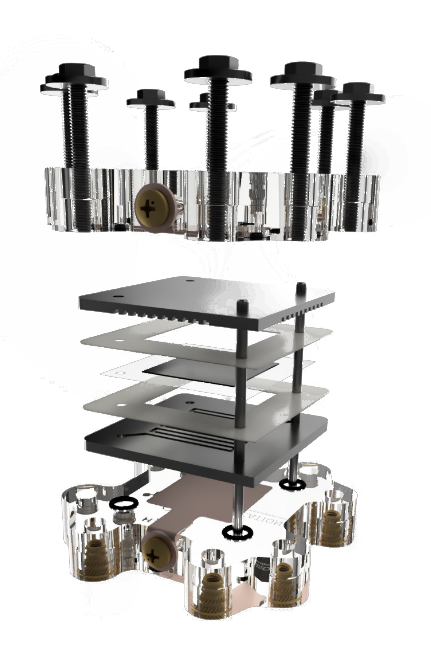

Stack Contents Include:
- Plastic Endplates
- Anode configuration on both sides of the bipolar plate
- Expandable Design
- MEAs are included
- Hardware
Included Accessories: Guide Dowels
Technical Properties:
- MEA Active Area: 3.2 x 3.2 cm (10 cm²)
- MEA Membrane Area: 5.3 x 5.3 cm
- Fittings: 4 x 1/8" Push-to-connect (2 per reactant side)
- Graphite Plate Overall Dimensions (L x W x D): 6.3 x 6.3 x 0.4 cm
- Recommended Torque Value: 6–7 in-lb
Specifications
| Item number | F117 |
|---|---|
| Type | Fuel cell |
| Series | Adapta-Stack |
| Level | University |
| Technology | PEM |
| Rebuildable | Yes |
