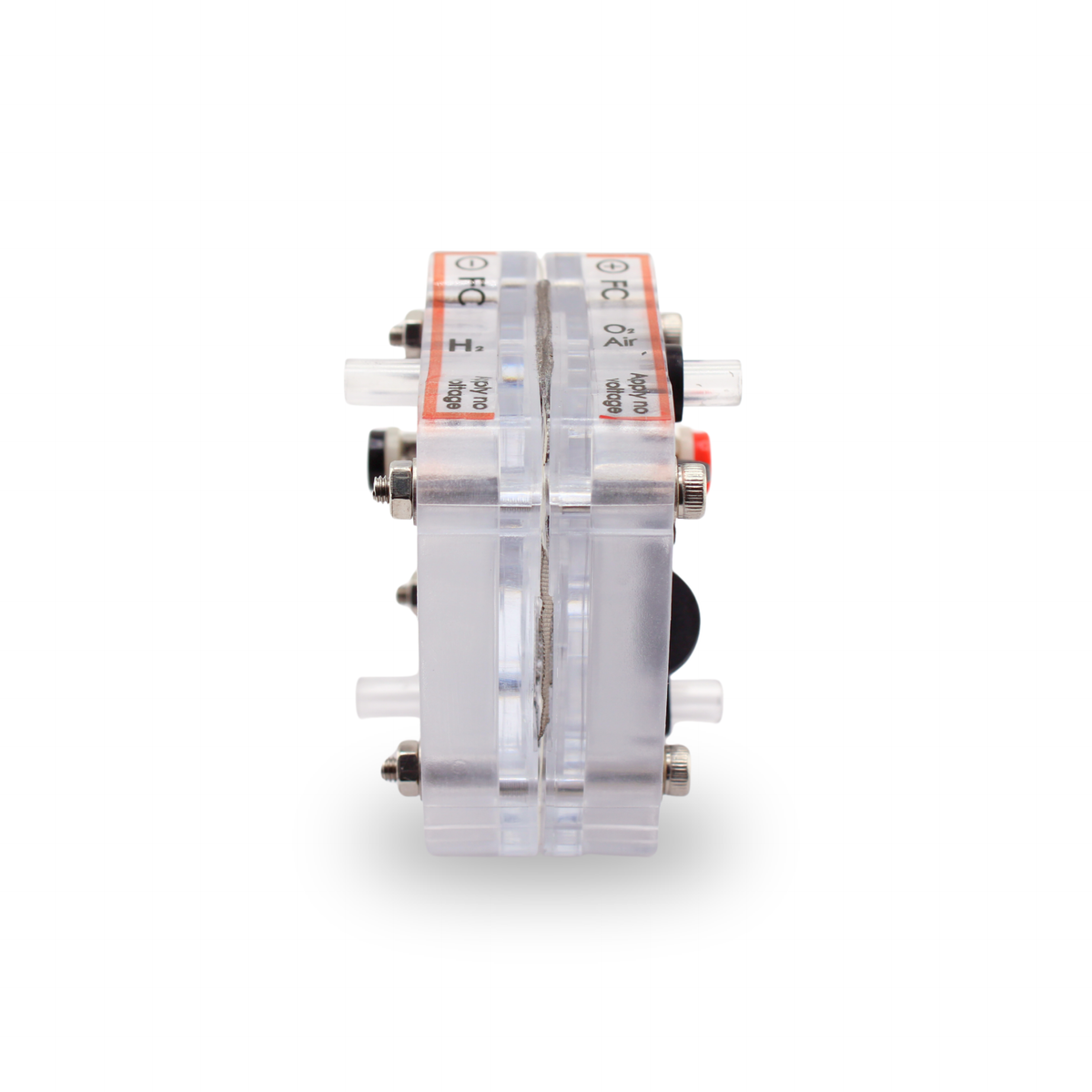

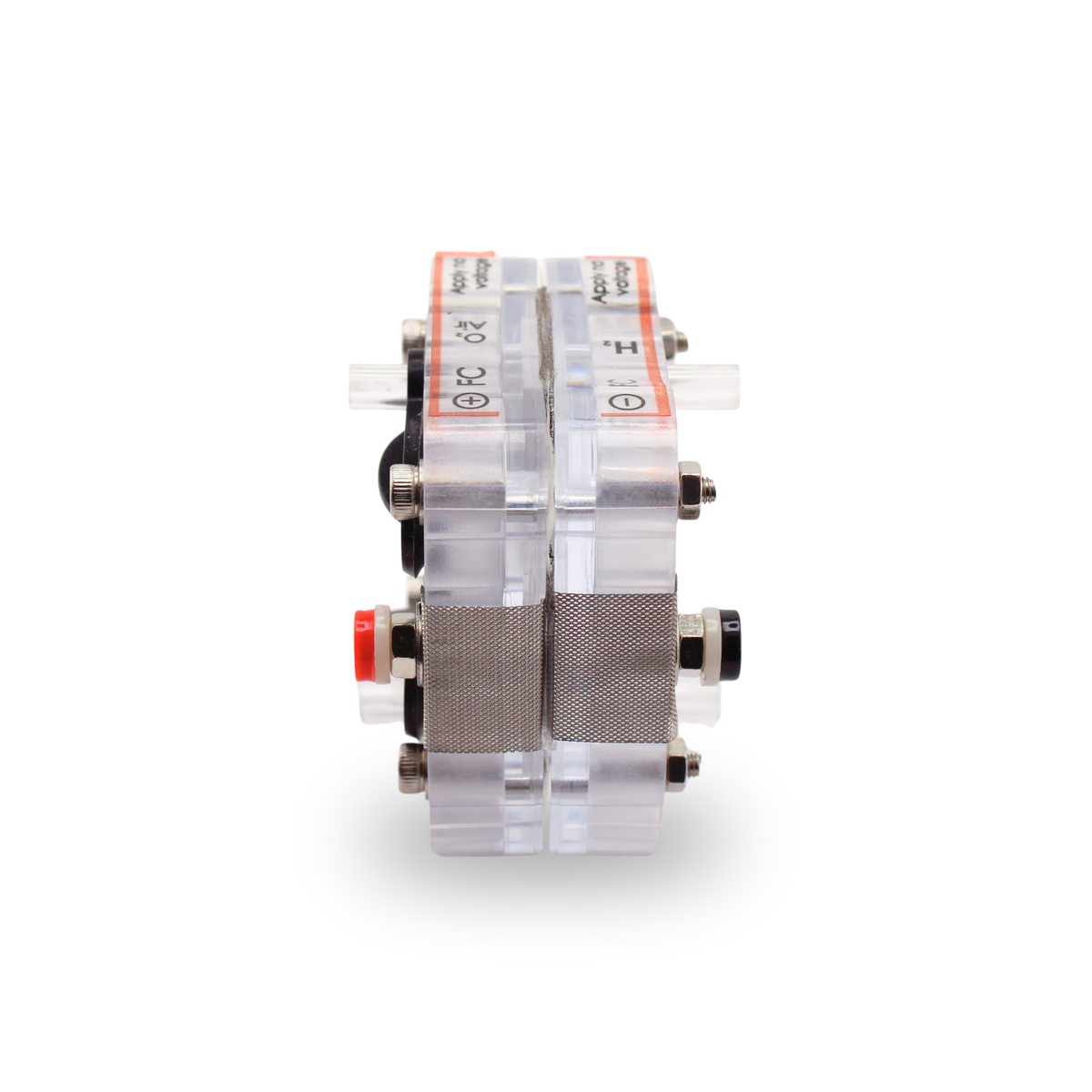

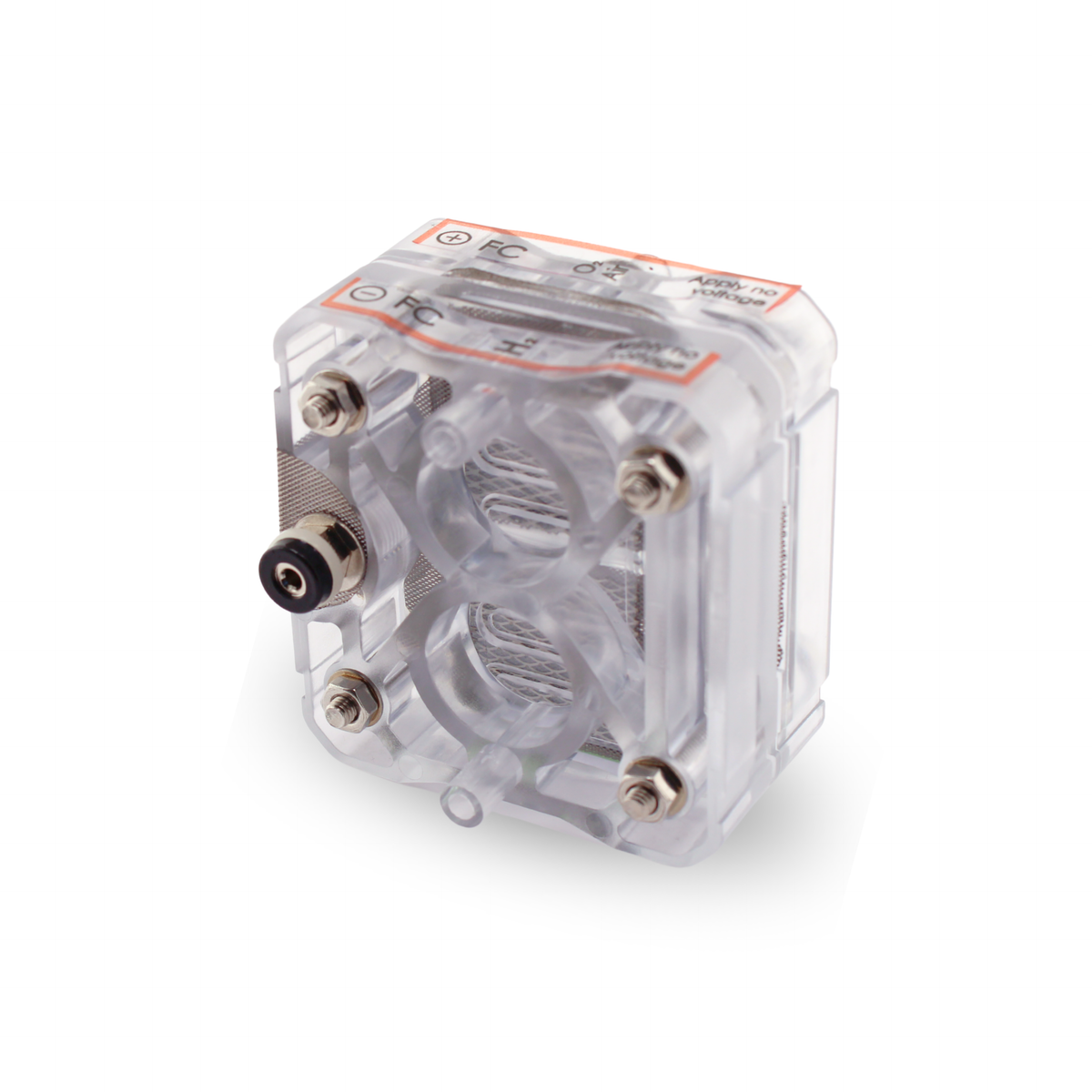

Double Fuel Cell H2/O2/Air
H-TEC's Double Fuel Cell H2/O2/Air can be operated in two modes: (1) Hydrogen and Oxygen or (2) Hydrogen and Air. This Proton Exchange Membrane (PEM) fuel cell produces electricity by using hydrogen and oxygen gas (or atmospheric oxygen). Its only by-products are water and heat....
Key specs
| Item number | F104 |
|---|---|
| Technology | PEM |
| Cell count | 2 |
| Rated power | 1.0 W |
| Dimensions | 2.2" x 1.6" x 2" (56 x 42 x 50 mm) |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
H-TEC's Double Fuel Cell H2/O2/Air can be operated in two modes: (1) Hydrogen and Oxygen or (2) Hydrogen and Air.
This Proton Exchange Membrane (PEM) fuel cell produces electricity by using hydrogen and oxygen gas (or atmospheric oxygen). Its only by-products are water and heat.

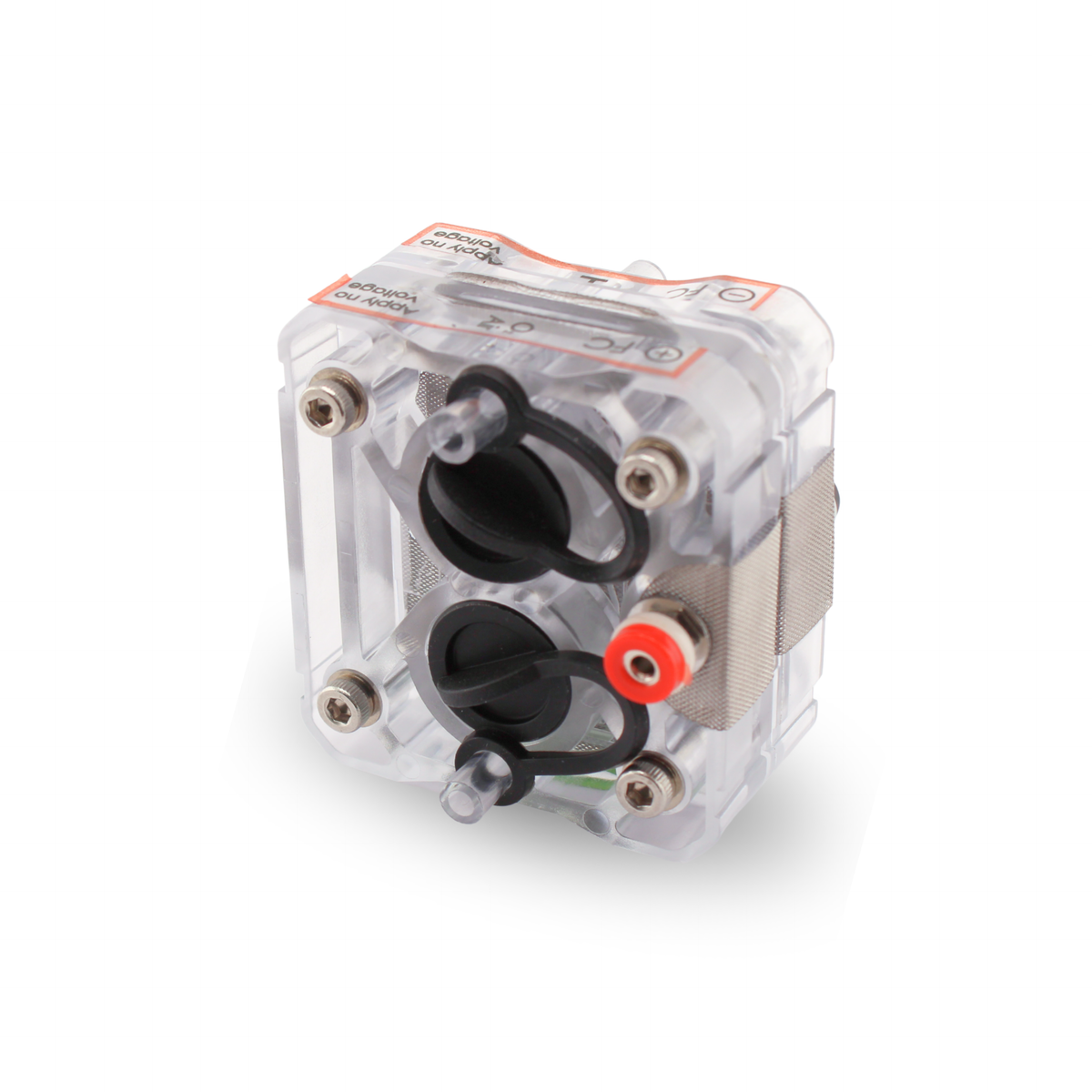

With the Double Fuel Cell H2/O2/Air, you have the option of operating the cell in air-breathing mode (Hydrogen and Air mode) simply by removing the stopper. When operating with atmospheric oxygen (air), the power of the cell is somewhat lower than when operating with pure oxygen (Hydrogen and Oxygen Mode). When dealing with larger fuel cell systems, running your fuel cell on Atmospheric Oxygen (Air) versus pure Oxygen allows for an easier and cheaper overall operation!
Double Fuel Cell H2/O2/Air, F104 - Technical Specifications:
- Power in Fuel Cell H2/O2 Mode: 1 W
- Power in Fuel Cell H2/Air Mode: 300 mW
- Dimensions (H x W x D): 2.2" x 1.6" x 2" (56 x 42 x 50 mm)
- Weight: 2.1 oz (60 g)
Specifications
| Item number | F104 |
|---|---|
| Type | Fuel cell |
| Technology | PEM |
| Cell count | 2 |
| Rated power | 1.0 W |
| Dimensions | 2.2" x 1.6" x 2" (56 x 42 x 50 mm) |
| Operating modes | H2/O2, H2/Air |
