Double Reversible Fuel Cell H2/O2/Air
Regular price
$99.00
Sale price
Regular price
Shipping calculated at checkout.

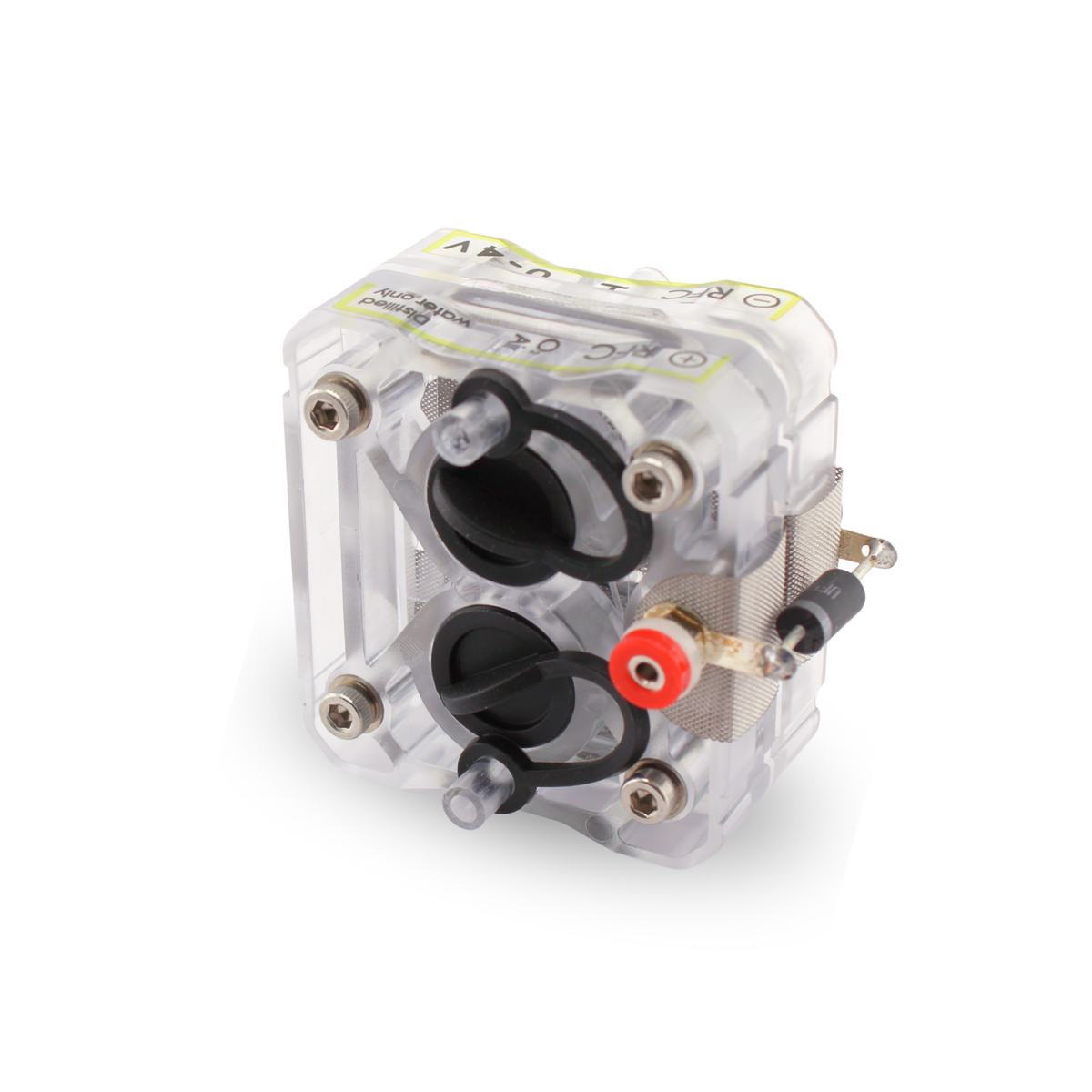

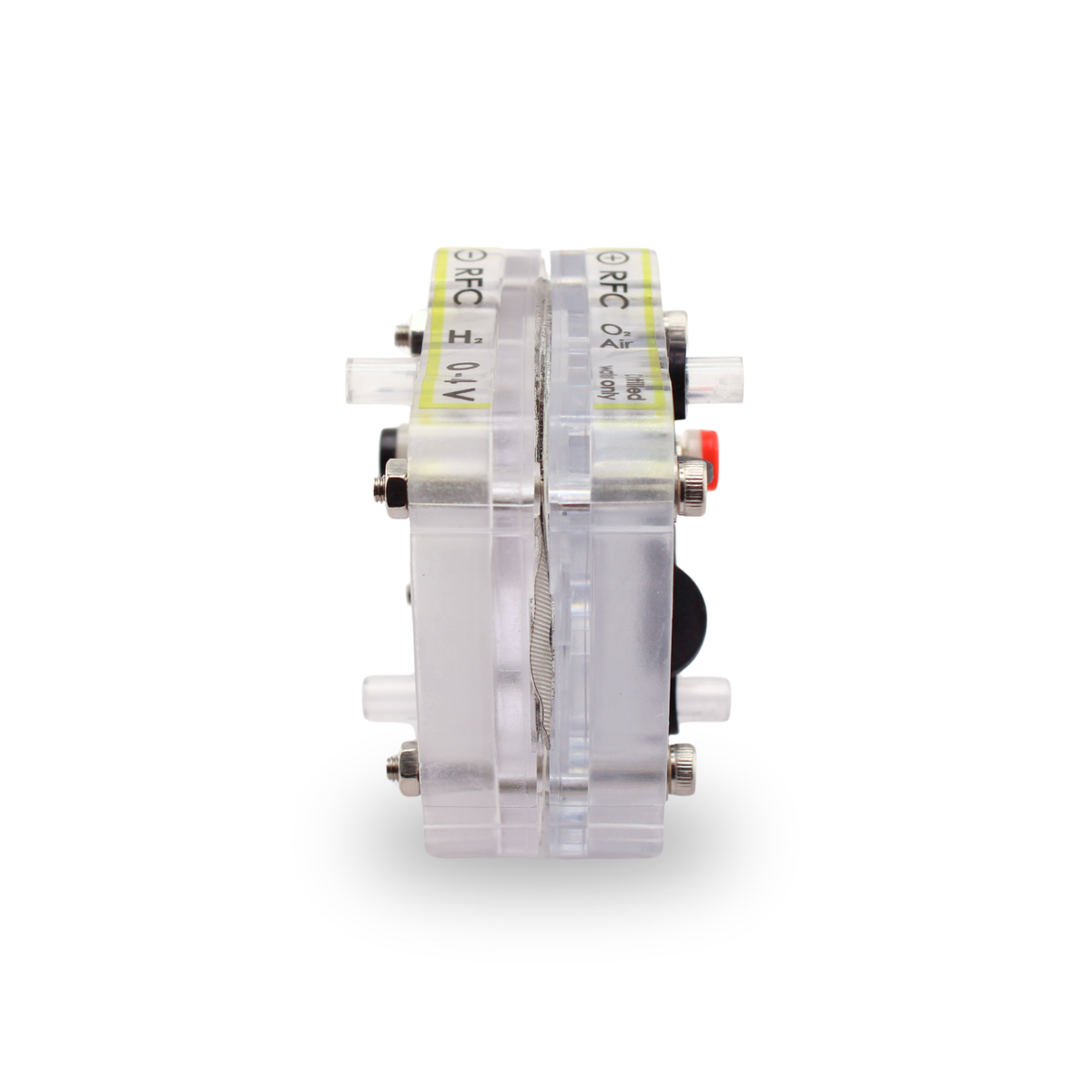

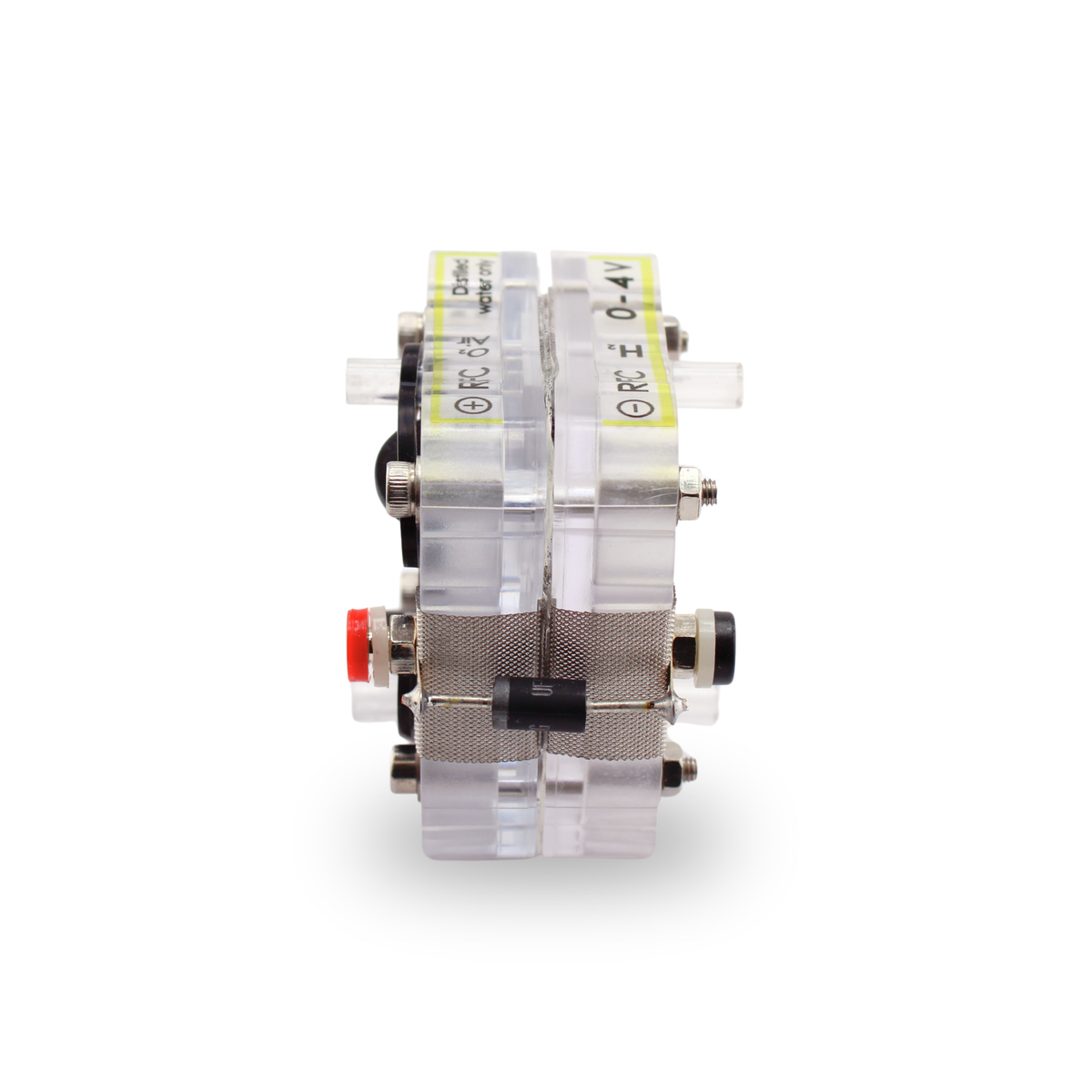

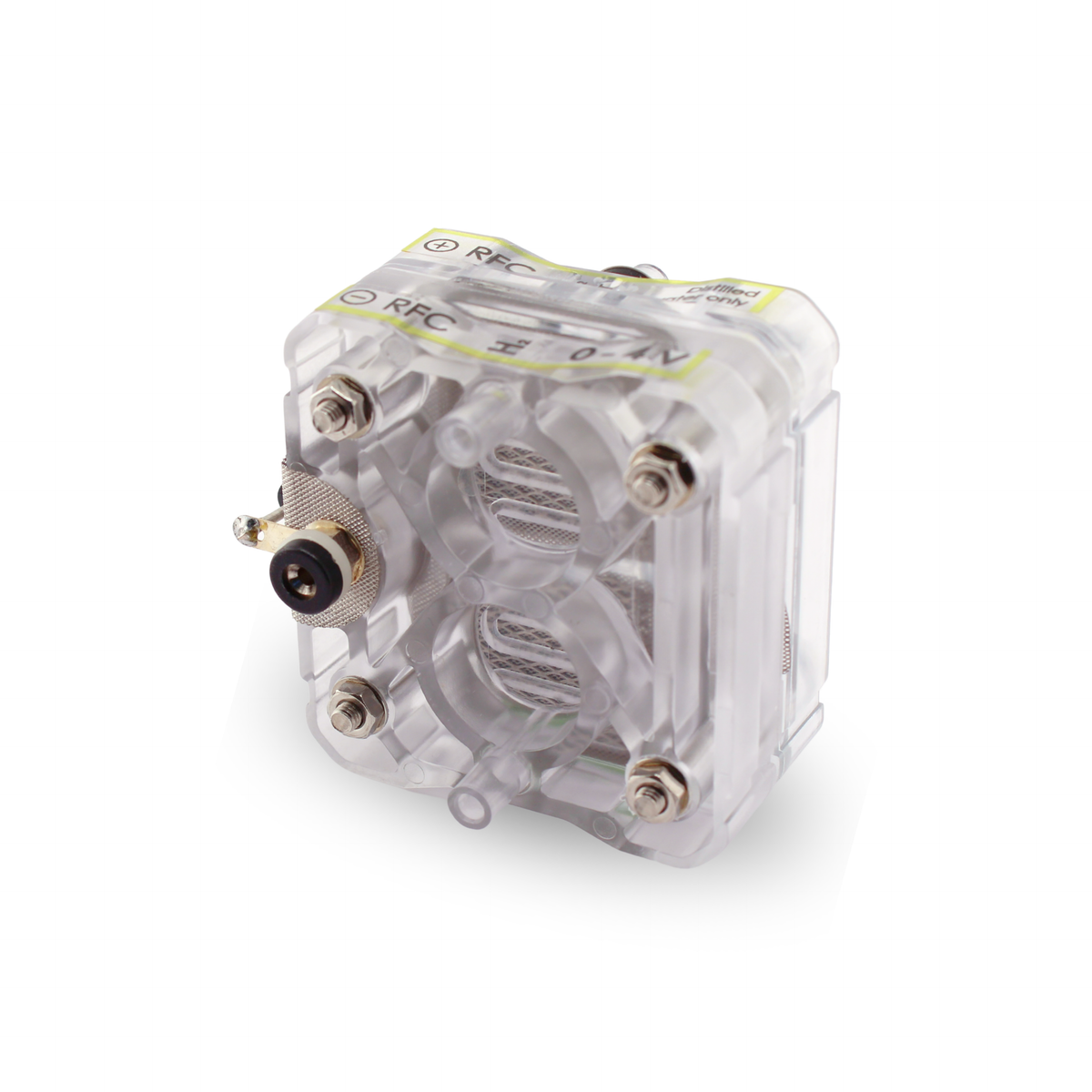

H-TEC's Reversible Double-cell PEM fuel cell for the production of hydrogen and oxygen (electrolyzer mode) and for the utilization of hydrogen and oxygen or hydrogen and air (fuel cell mode).
Key specs
| Item number | R104 |
|---|---|
| Technology | PEM |
| Cell count | 2 |
| H₂ rate | 10.0 cm³/min |
| Dimensions | 56 x 42 x 57 mm |
Description
H-TEC's Reversible Double-cell PEM fuel cell for the production of hydrogen and oxygen (electrolyzer mode) and for the utilization of hydrogen and oxygen or hydrogen and air (fuel cell mode).
- Double RFC H2/O2/Air, R104 - Technical Specifications:
- Electrolyzer Mode: 10 cm³/min H2; 5 cm³/min O2; 2.33 W
- Fuel Cell Mode (O2): 1000 mW
- Fuel Cell Mode (Air): 400 mW
- H x W x D: 2.2" x 1.7" x 2.2" (56 x 42 x 57 mm)
- Weight: 2.2 oz (63 g)
Specifications
| Item number | R104 |
|---|---|
| Type | Fuel cell |
| Technology | PEM |
| Cell count | 2 |
| H₂ rate | 10.0 cm³/min |
| O₂ rate | 5.0 cm³/min |
| Dimensions | 56 x 42 x 57 mm |
| Operating modes | H2/O2, H2/Air, reversible |
