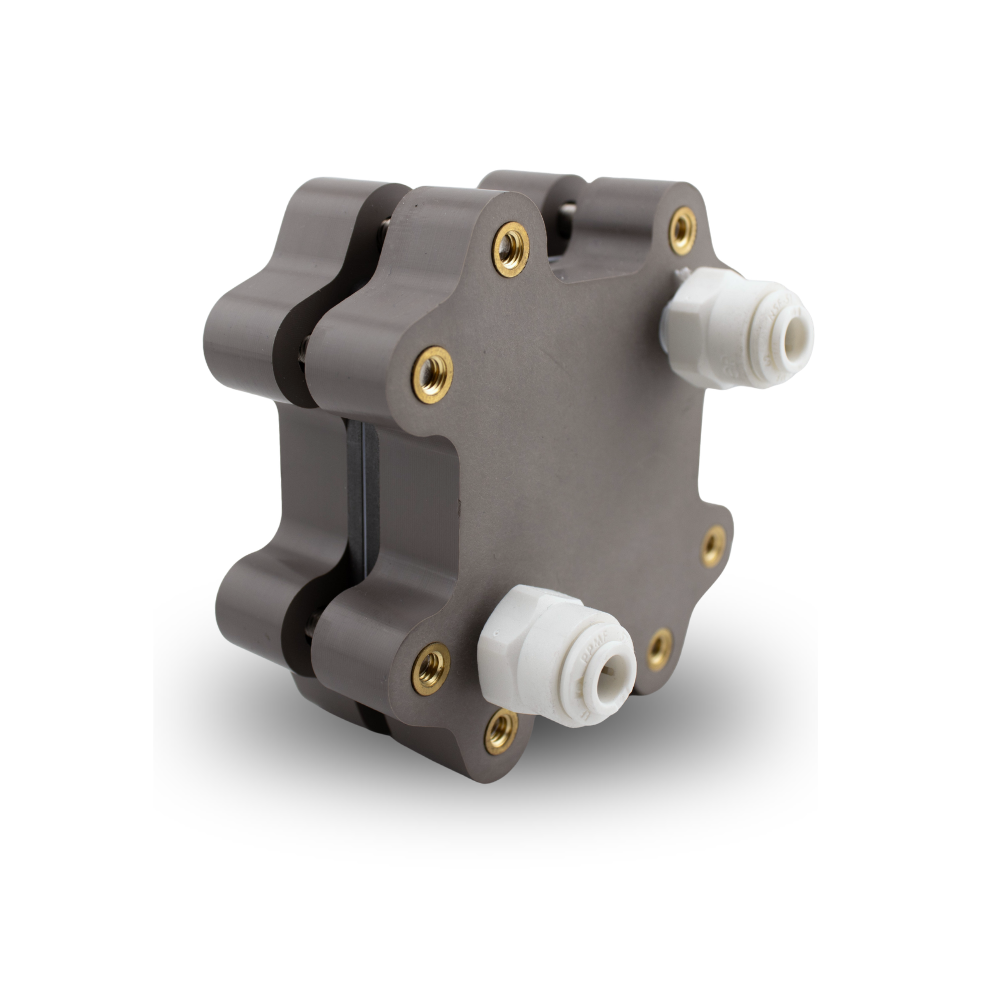

Flow Battery Adapta-Stack
The Adapta-Stack is a fully assembled, tested, and ready-to-use flow battery! Only a flathead screwdriver and torque wrench are necessary to assemble the Adapta-Stack so you can concentrate on creating your very own powered applications. Stack Contents Include: Endplates with Push-to-Connect Fittings Carbon Cloth Wetted...
Key specs
| Item number | F116 |
|---|---|
| Technology | Flow battery |
| Dimensions | 3.25" x 3.25" x 2" (8.26 x 8.26 x 5.1 cm) |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
The Adapta-Stack is a fully assembled, tested, and ready-to-use flow battery! Only a flathead screwdriver and torque wrench are necessary to assemble the Adapta-Stack so you can concentrate on creating your very own powered applications.
Stack Contents Include:
- Endplates with Push-to-Connect Fittings
- Carbon Cloth
- Wetted PVC and CPVC
- Parallel Flow Fields
- Wetted Vinyl Ester
- Hardware
Included Accessories: Guide Dowels
Technical Specifications:
- Part number: F116
- Electrode Area: 10 cm²
- Ports: 4
- Flow Rate: 10 to 100 cc/minute at 1 Amp, 1 Volt for charging
- For Charging: 1 Amp / 1 Volt
- Liquid is fed into the bottom and out the top.
- Dimensions: 3.25" x 3.25" x 2" (8.26 x 8.26 x 5.1 cm)
- Recommended Torque Value: 8–10 in-lb
Flow Battery's Flow Rate
The Flow Battery Adapta-Stack's flow rate should be started at 10 cc per minute and go up to 100 cc per minute. The overall flow rate will be determined by the state of charge of the electrolyte.
Which Side is Positive and Negative?
When your Flow Battery has a charged electrolyte inside it, you can then tell which side is positive and which side is negative. When charging the Flow Battery, make sure that the liquid is fed into the bottom and out the top.
Specifications
| Item number | F116 |
|---|---|
| Type | Flow battery |
| Series | Adapta-Stack |
| Level | University |
| Technology | Flow battery |
| Electrode area | 10 cm² |
| Dimensions | 3.25" x 3.25" x 2" (8.26 x 8.26 x 5.1 cm) |
| Rebuildable | Yes |
