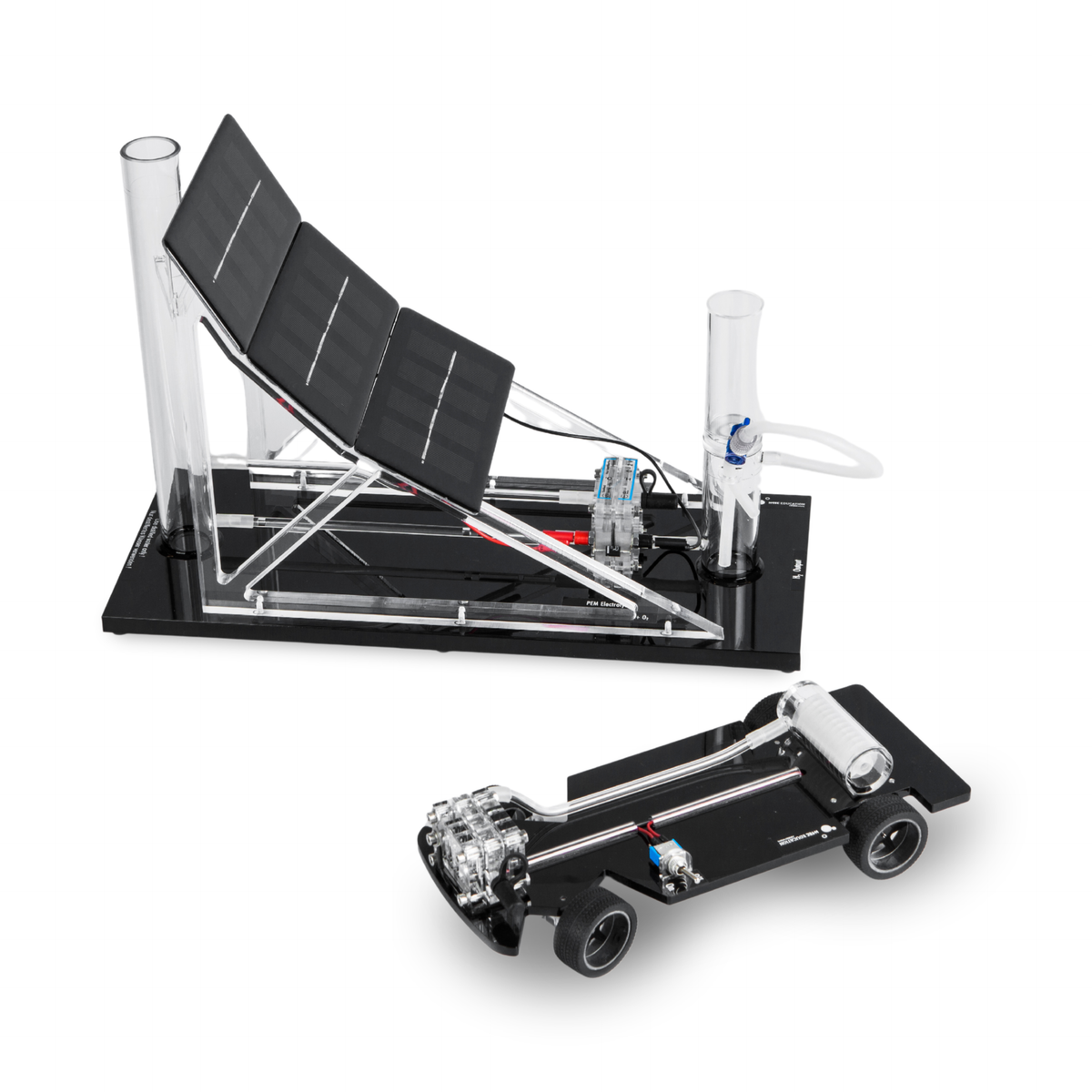

Fuel Cell Concept Car & Gas Station
H-TEC's most realistic model car set gives observers a glimpse of the transportation technology of the future. The gas station uses solar power to run an electrolyzer and produce hydrogen gas. This gas then feeds the air-breathing double fuel cell on board the car, producing...
Key specs
| Item number | D203 |
|---|---|
| Grades | 6–12 |
| Technology | PEM |
| Cell count | 2 |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
H-TEC's most realistic model car set gives observers a glimpse of the transportation technology of the future. The gas station uses solar power to run an electrolyzer and produce hydrogen gas. This gas then feeds the air-breathing double fuel cell on board the car, producing electricity and driving the car forward. One tank of hydrogen produces enough power for a 7-minute run time!
Diminishing resources, more severe environmental impacts, and the ever-increasing demand for energy force us to reconsider the structure of our energy supply system. The automobile industry and oil companies increasingly invest in hydrogen technology because it offers solutions to some of these concerns. This fascinating technology combines a sound energy supply with minimal impact on our natural resources.

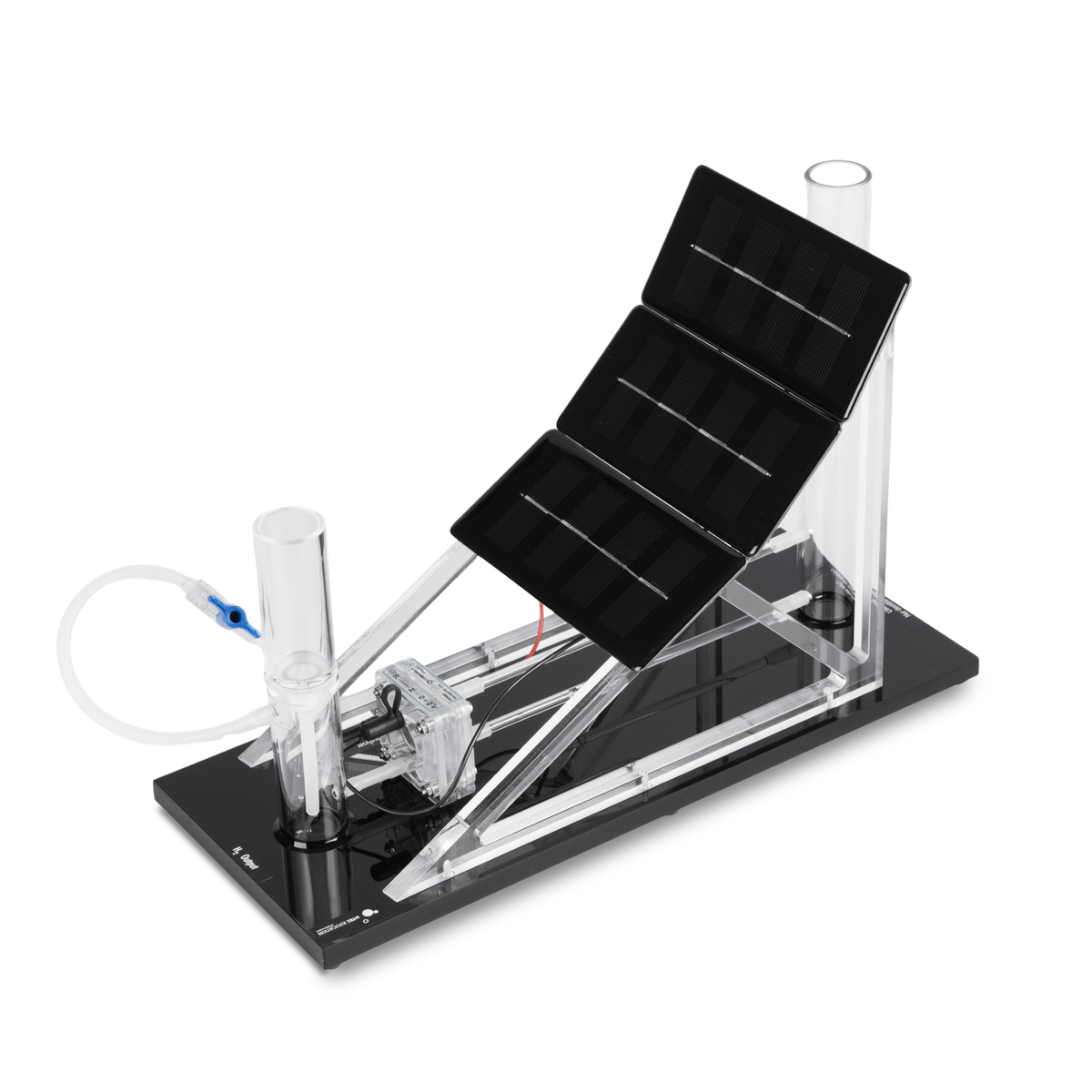

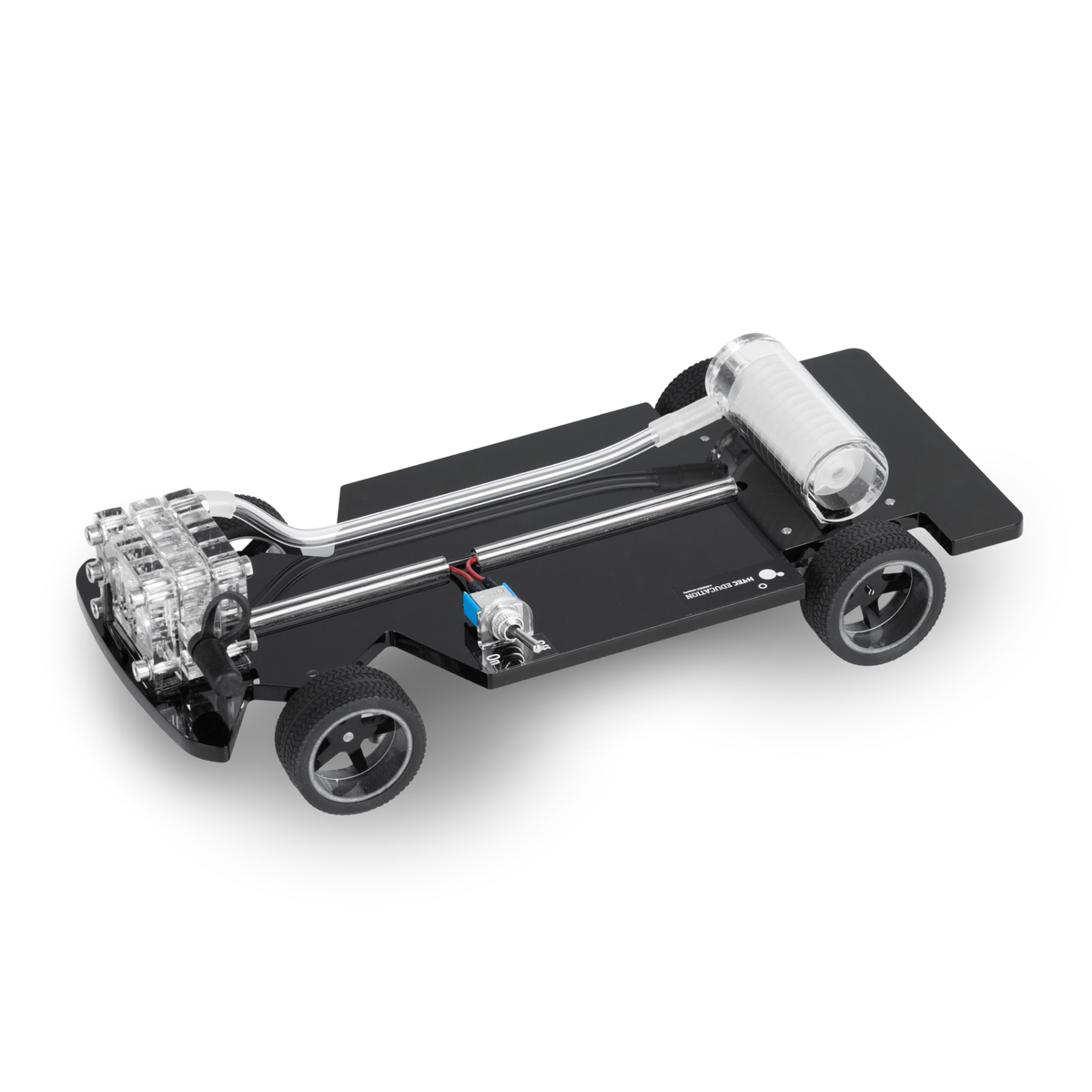

Hydrogen is produced and stored in the Hydrogen Gas Station. The Fuel Cell Concept Car is fueled with hydrogen and realistically demonstrates the technology of future fuel cell vehicles.
The equipment can be used to demonstrate the operation of PEM (Proton Exchange Membrane) fuel cells and PEM Electrolyzers.
Fuel Cell Concept Car and Gas Station - D203 Includes:
- Model Car
- Fuel Cell Stack: Hydrogen and Air (two cells)
- Electrolyzer
- Hydrogen Storage Tank
- 3-Panel Solar Module
- Hydrogen Gas Station Base
- Power Supply (can be used in place of the solar module for faster operation)
- Instructional PDF Textbook
The included H-TEC Education fuel cell PDF textbook contains information about the technology and instructions for a variety of experiments.
Specifications
| Item number | D203 |
|---|---|
| Type | Kit |
| Series | Exhibition |
| Level | Demonstration |
| Grades | 6–12 |
| Technology | PEM |
| Cell count | 2 |
| Run time | 7 min per tank |
| Operating modes | H2/Air |
| Power source | solar, lab PSU |
| Textbook | Included |
What's in the box
- 1× Model Car
- 1× Fuel Cell Stack: Hydrogen and Air (two cells) — H2/Air double cell
- 1× Electrolyzer
- 1× Hydrogen Storage Tank
- 1× 3-Panel Solar Module
- 1× Hydrogen Gas Station Base
- 1× Power Supply (Junior / 2 mm) — Optional vs solar for faster H2 production
- 1× Instructional PDF Textbook
You will need
- Required Distilled / deionized water — Conductivity <2 µS/cm recommended
- Required Sunlight or lab power supply — Solar module included; 2 mm PSU optional for faster fill
Experiments
-
Solar hydrogen production and Concept Car drive
45–60 min
High school · Demonstration
Curriculum
-
NGSS HS-PS3-3
NGSS
Design, build, and refine a device that works within given constraints to convert one form of energy into another form of energy.
