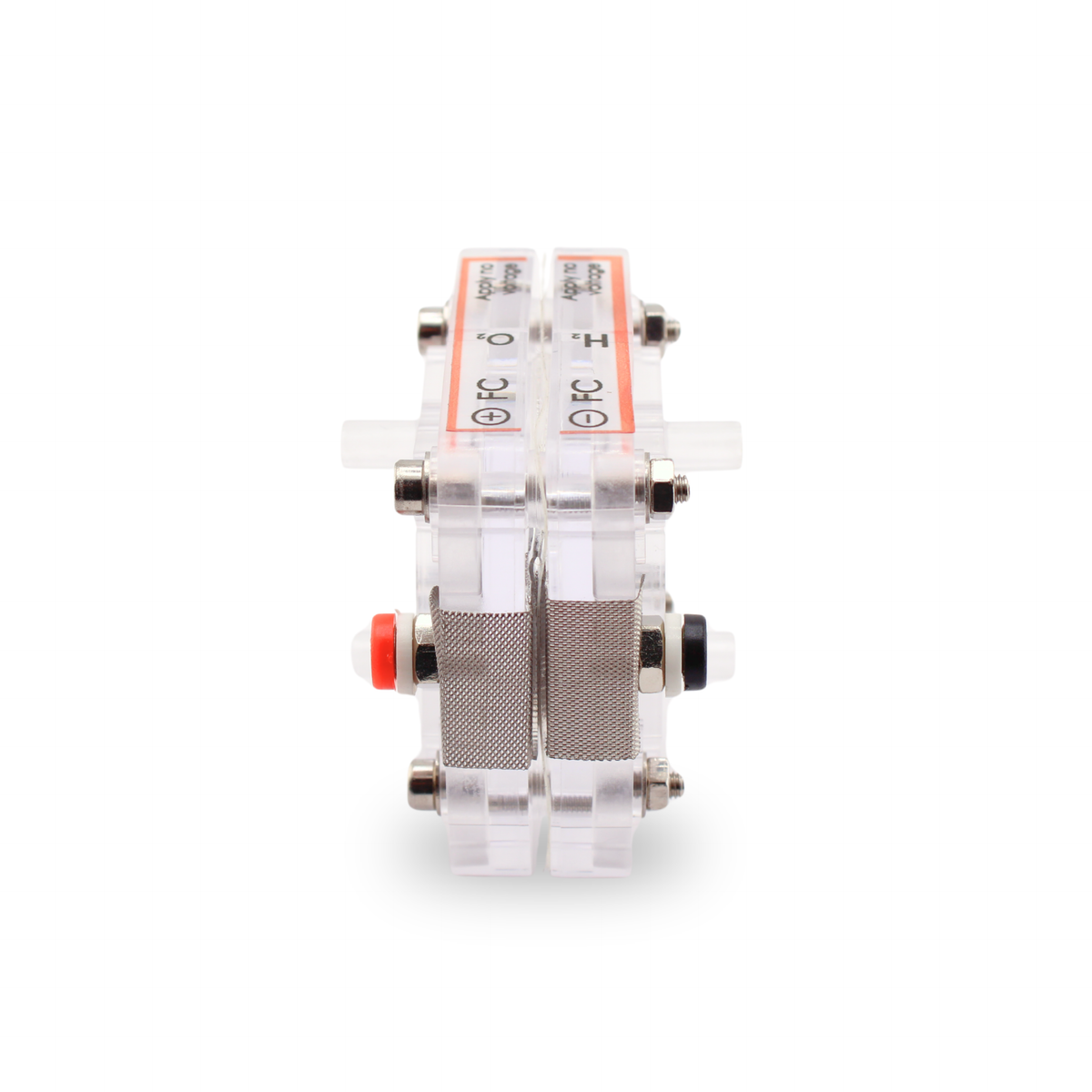

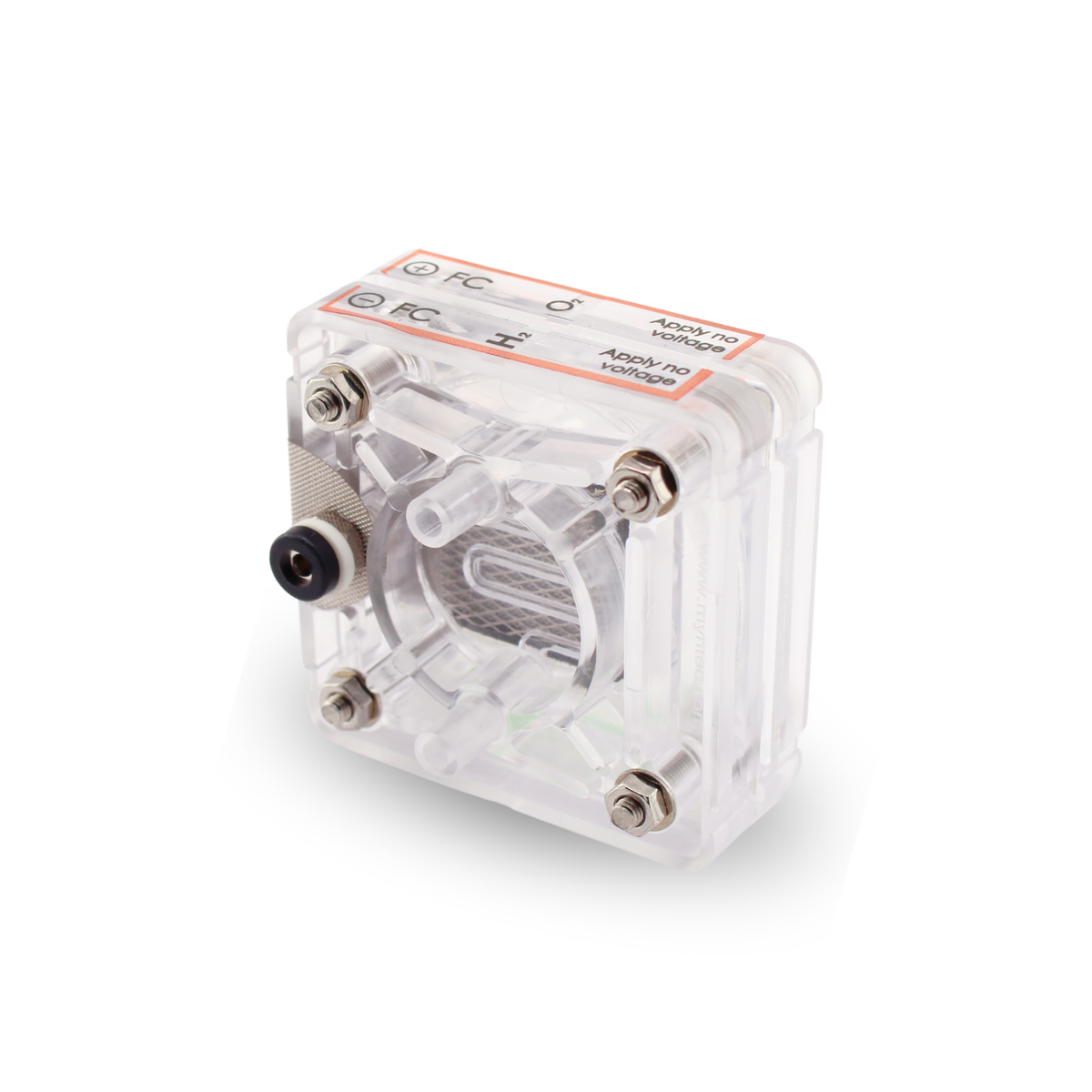

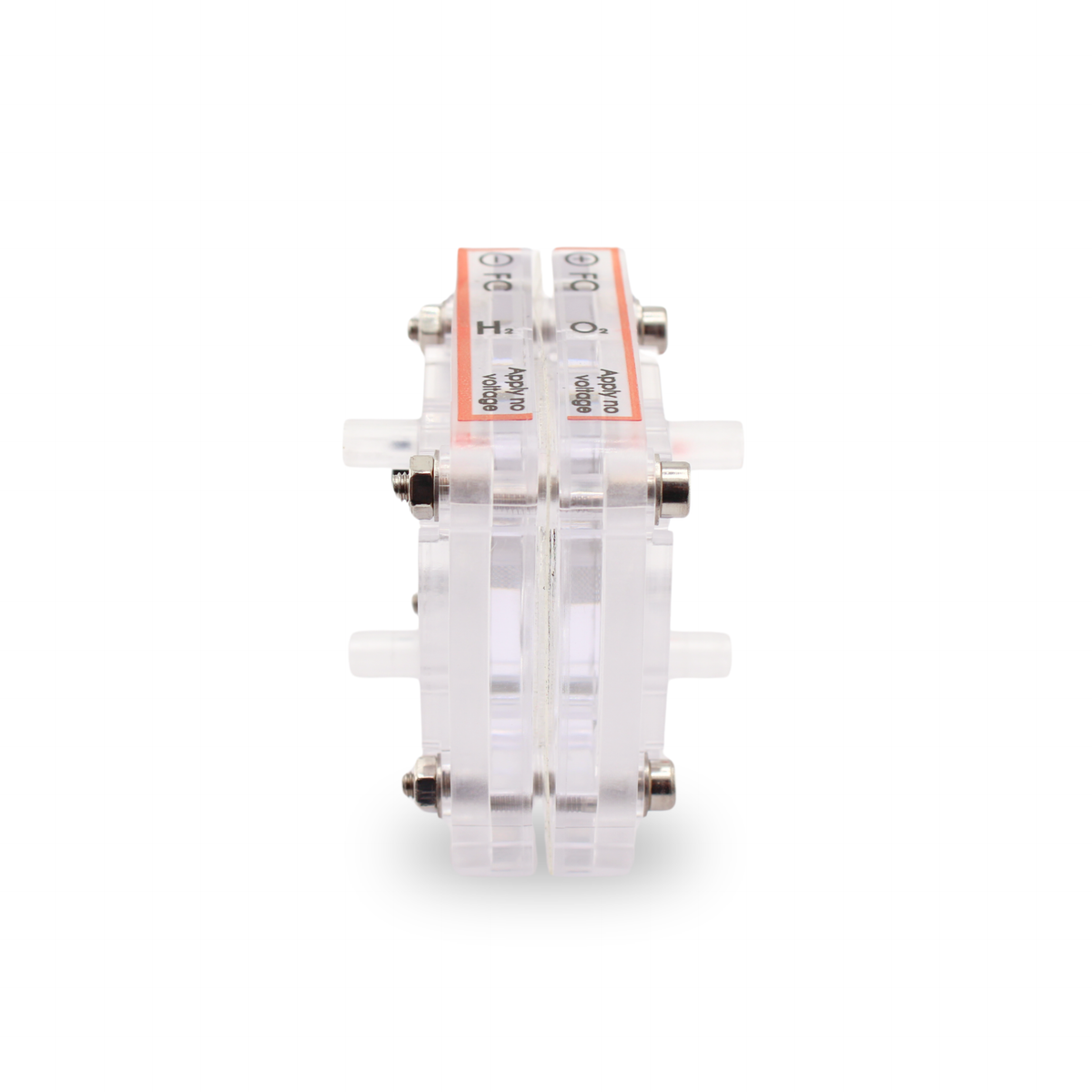

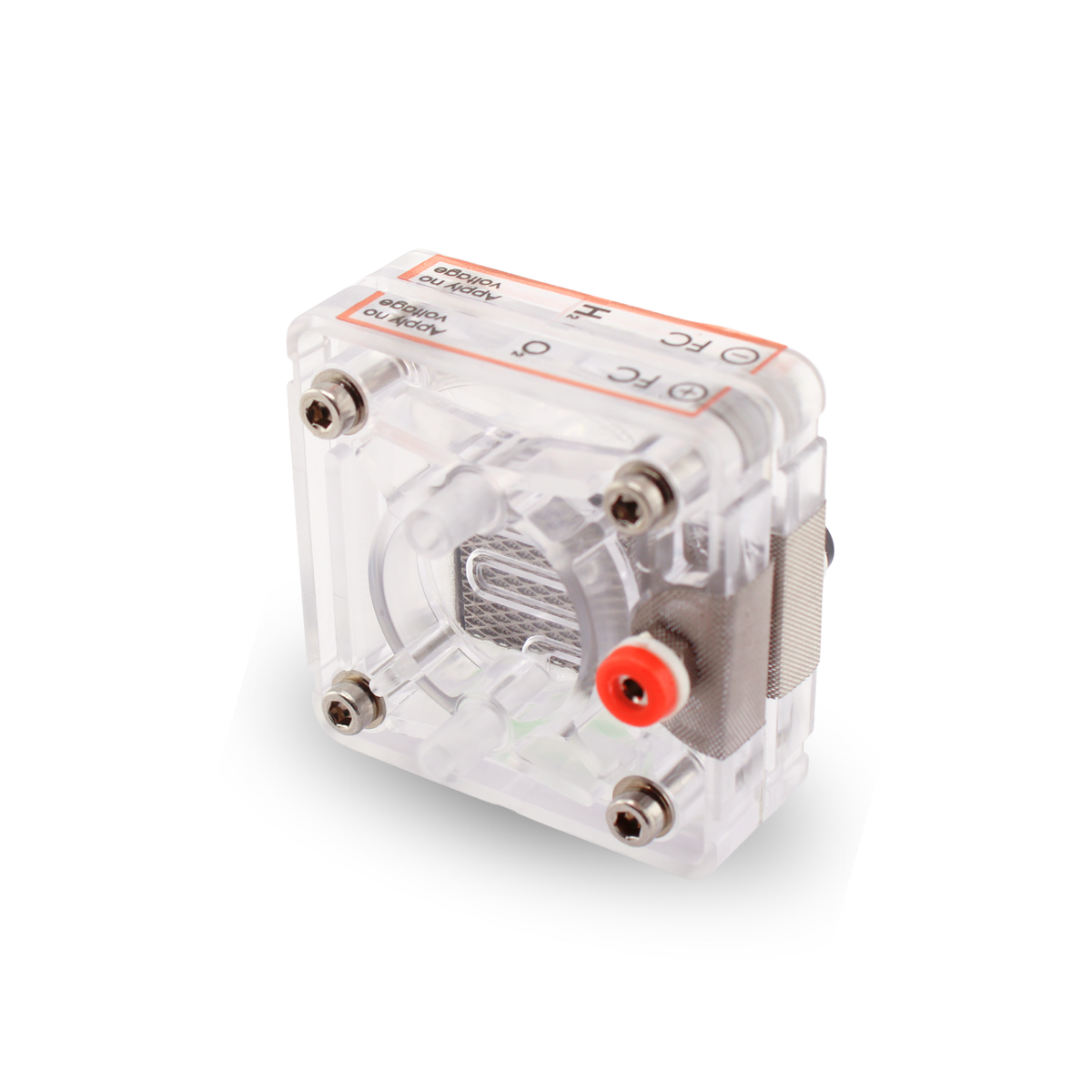

Single Fuel Cell H2/O2
H-TEC's Fuel Cell H2/O2 is a single-cell Proton Exchange Membrane Fuel Cell (PEMFC) for hydrogen and oxygen operation. Operating on pure oxygen, it delivers much higher performance than an air-fed fuel cell. This Proton Exchange Membrane (PEM) fuel cell produces electricity by using hydrogen and...
Key specs
| Item number | F101 |
|---|---|
| Technology | PEM |
| Cell count | 1 |
| Rated power | 0.5 W |
| Dimensions | 2.0" x 2.0" x 1.6" (51 x 51 x 41 mm) |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
H-TEC's Fuel Cell H2/O2 is a single-cell Proton Exchange Membrane Fuel Cell (PEMFC) for hydrogen and oxygen operation. Operating on pure oxygen, it delivers much higher performance than an air-fed fuel cell.
This Proton Exchange Membrane (PEM) fuel cell produces electricity by using hydrogen and oxygen gas. Its only by-products are water and heat.
Fuel Cell H2/O2, F101 - Technical Specifications:
- Power in Hydrogen and Oxygen Mode: 500 mW
- Electrode Area: 2.9 cm²
- Generated Voltage: 0.45 - 0.96 V DC
- Dimensions (H x W x D): 2.0" x 2.0" x 1.6" (51 x 51 x 41 mm)
- Weight: ~2 oz (58 g)
Specifications
| Item number | F101 |
|---|---|
| Type | Fuel cell |
| Technology | PEM |
| Cell count | 1 |
| Electrode area | 2.9 cm² |
| Rated power | 0.5 W |
| Dimensions | 2.0" x 2.0" x 1.6" (51 x 51 x 41 mm) |
| Operating modes | H2/O2 |
