Fuel Cell Monitor Pro 4.0
The Fuel Cell Monitor Pro 4.0 by H-TEC can calculate the efficiency and electrical characteristics of fuel cells and electrolyzers and allows real-time monitoring of every cell in the fuel cell stack. The Measuring Transformer Card provides the possibility of four-conductor measurement for the compensation...
Key specs
| Item number | U104 |
|---|
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
The Fuel Cell Monitor Pro 4.0 by H-TEC can calculate the efficiency and electrical characteristics of fuel cells and electrolyzers and allows real-time monitoring of every cell in the fuel cell stack.

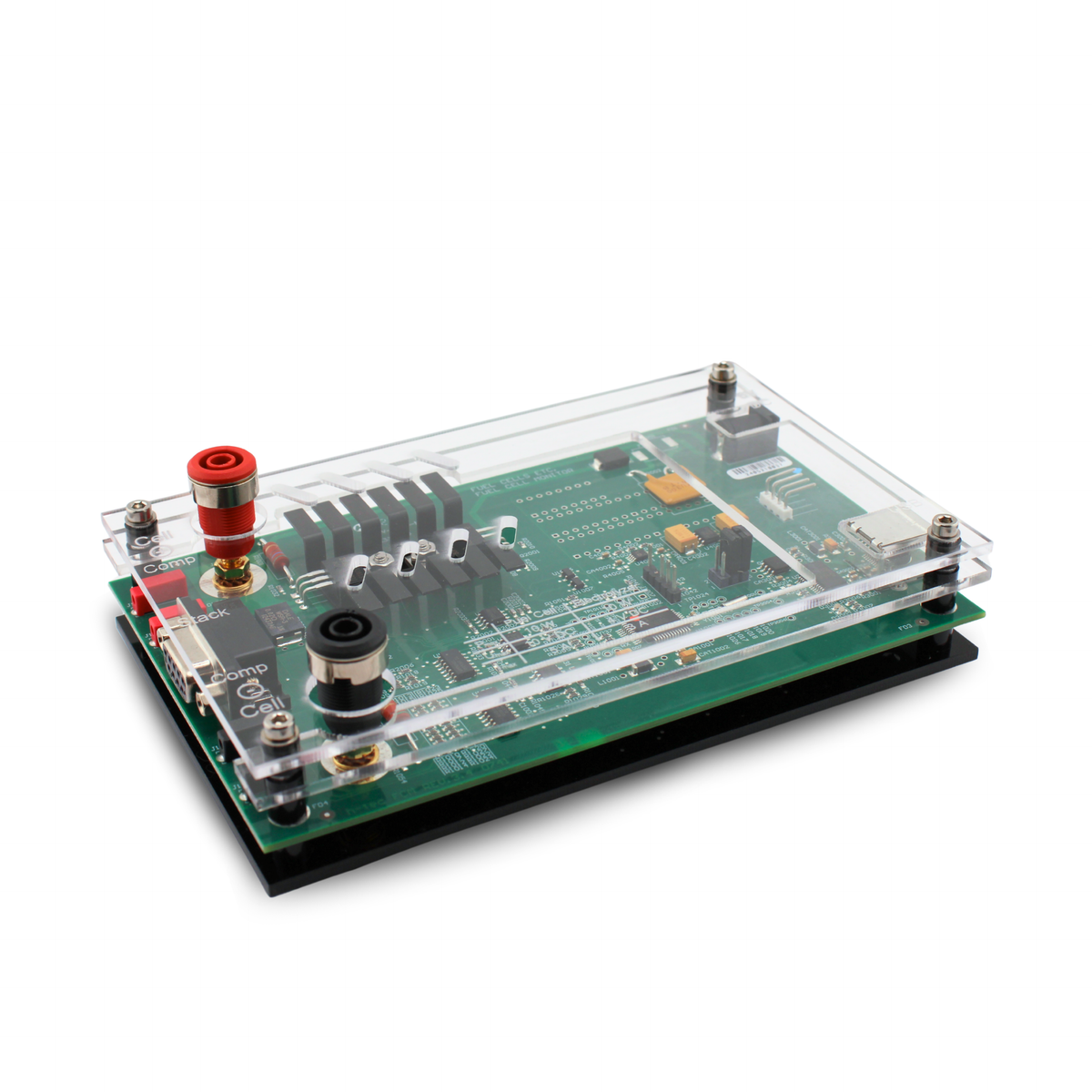

The Measuring Transformer Card provides the possibility of four-conductor measurement for the compensation of measurement errors. The measured value recording can be performed automatically, voltage-regulated, current-regulated or manually. The efficiency of H-TEC educational fuel cells can also be measured with the Fuel Cell Monitor Pro. It also displays up to ten individual voltages of a fuel cell stack in real-time and records and displays characteristic curves and efficiency of H-TEC educational electrolyzers.
Features:
- External measuring transformer card for measuring and recording the characteristics of fuel cell models: voltage, current, and time
- Connects to a computer via USB cable

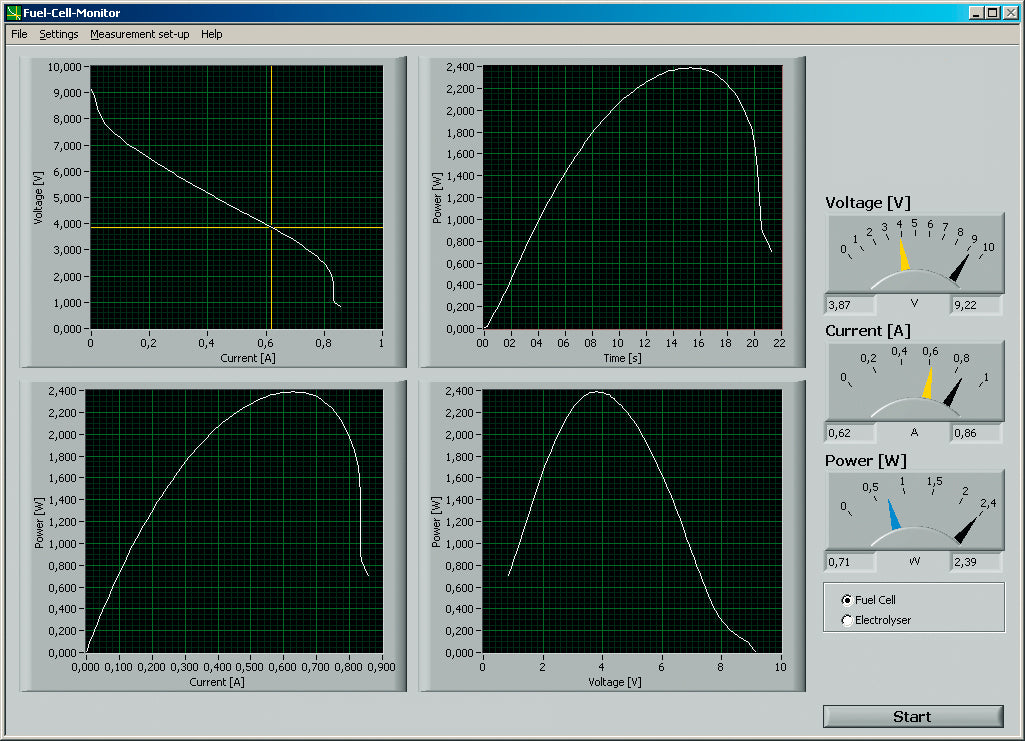

- Supplied software allows you to plot the fuel cell stack’s voltage-current, power-voltage, power-current, and power-time characteristics
- Recording can be done automatically, at certain voltage or current points, or manually
- Data recording in .txt or .csv format

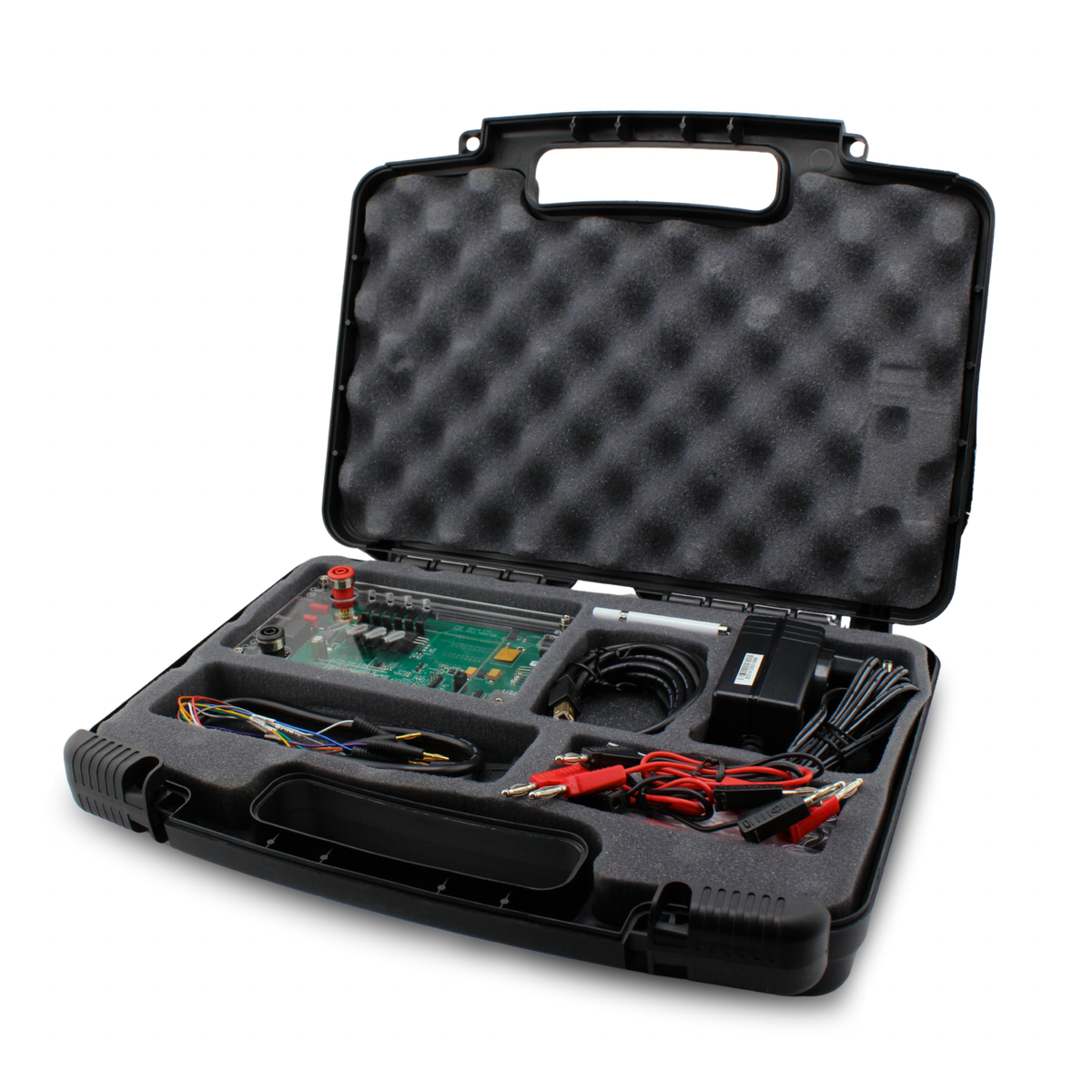

Contents Include:
- Measuring Transformer Card
- Software
- Individual Voltage Measurement Cable
- Cable Set (USB cable, 2x 2 mm cable set, 2x 4 mm cable set, 2x adapters)
- Power Supply
- Transport Case
- Detailed Operating Manual
Minimum System Requirements: A Windows PC with USB port (Windows 10 or later recommended; older versions may work)
Recommended Requirements:Microsoft Excel (for individualized data plotting)
Measurements Possible With the Fuel Cell Monitor Pro 4.0, U104:
- Voltage-controlled automatic measurements
- Determining the characteristic curve of an electrolyzer
- Determining electrolyzer efficiency
- Determining the characteristic curves of a fuel cell
- Determining fuel cell efficiency
- Determining the decomposition voltage of water
- Long-term measurements at your own computer
- Fixing the output at different operating points of the fuel cell stack
- Monitoring single cell stack voltages at your computer
- Power-controlled automatic measurements
Specifications
| Item number | U104 |
|---|---|
| Type | Component |
| Level | University |
