Junior Pro

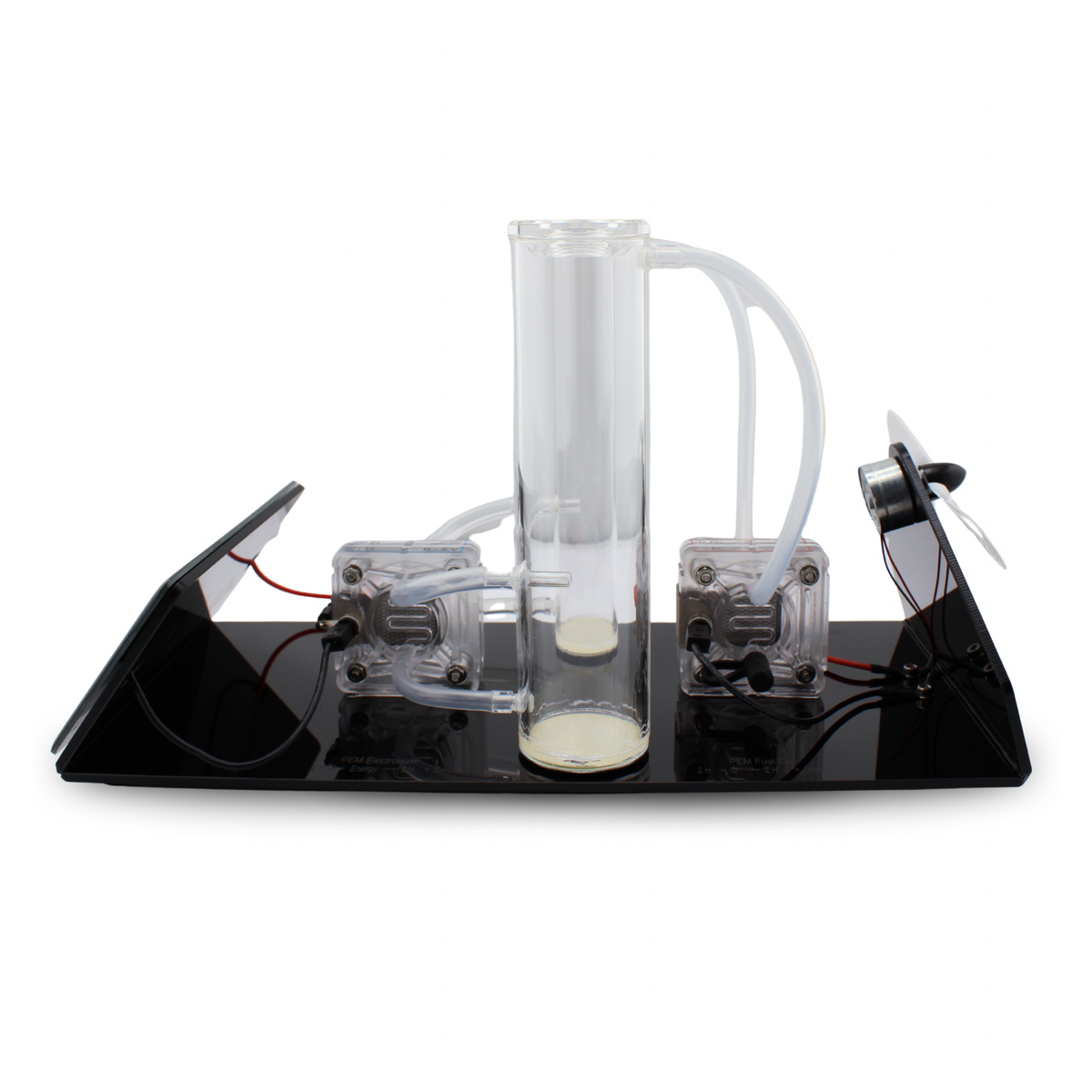

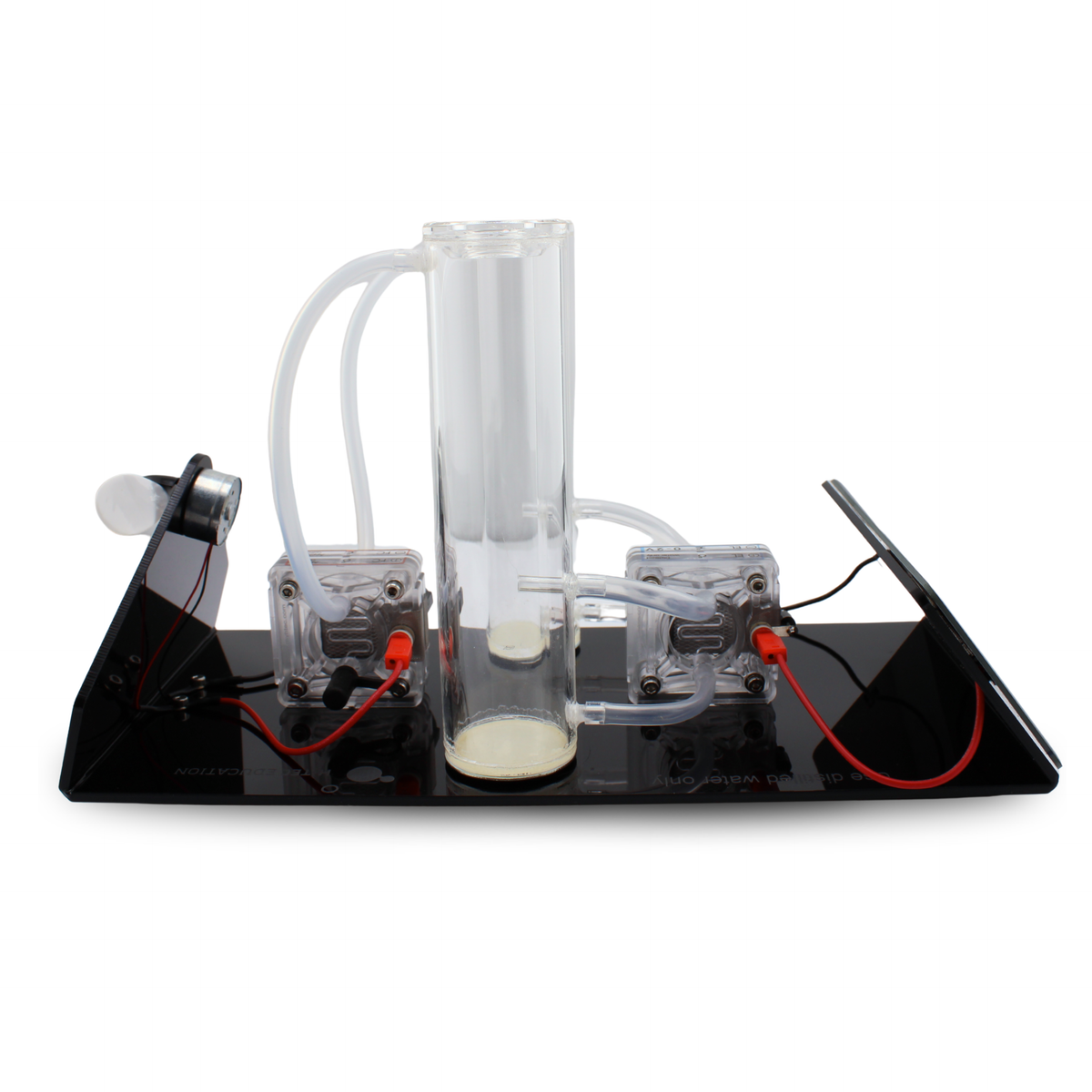

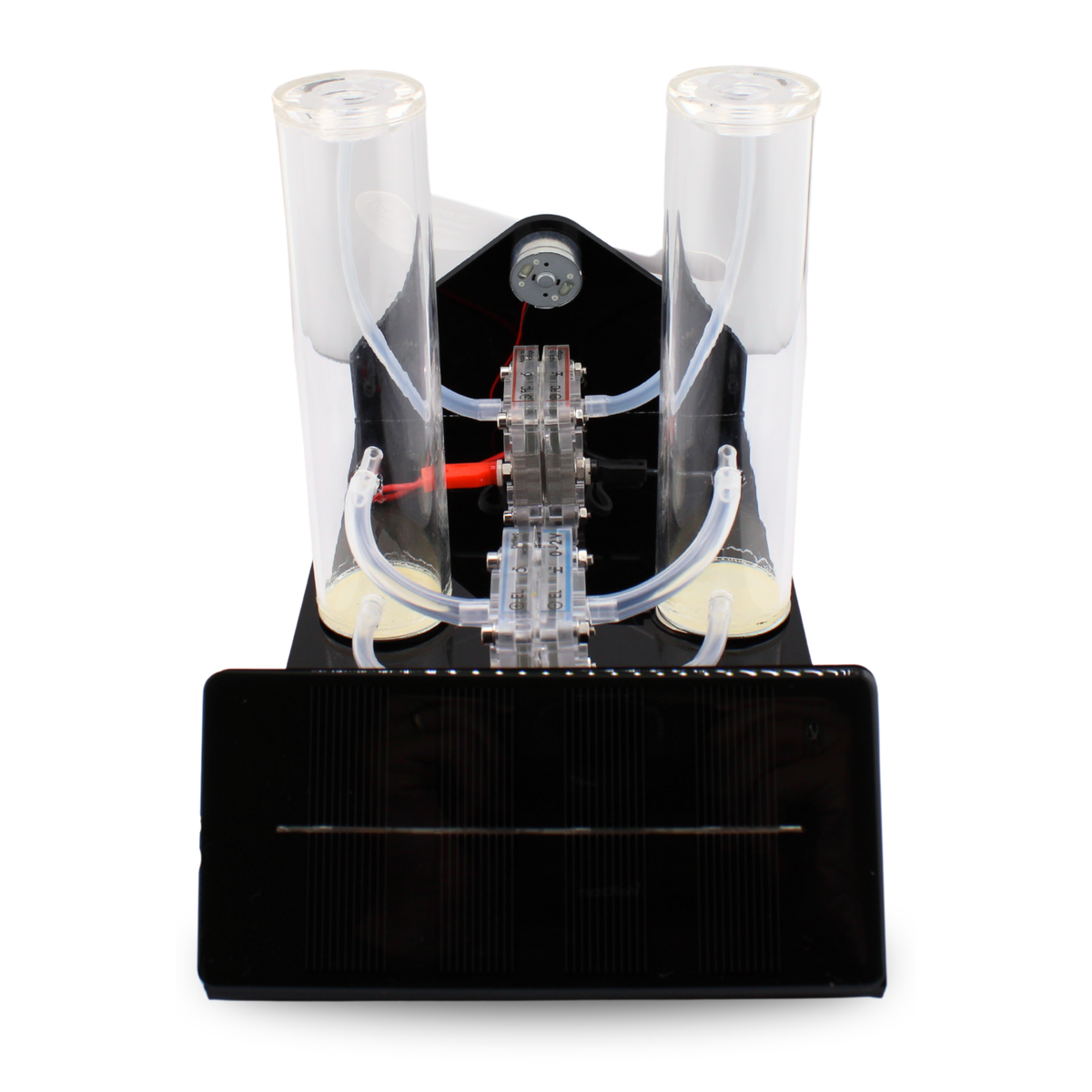

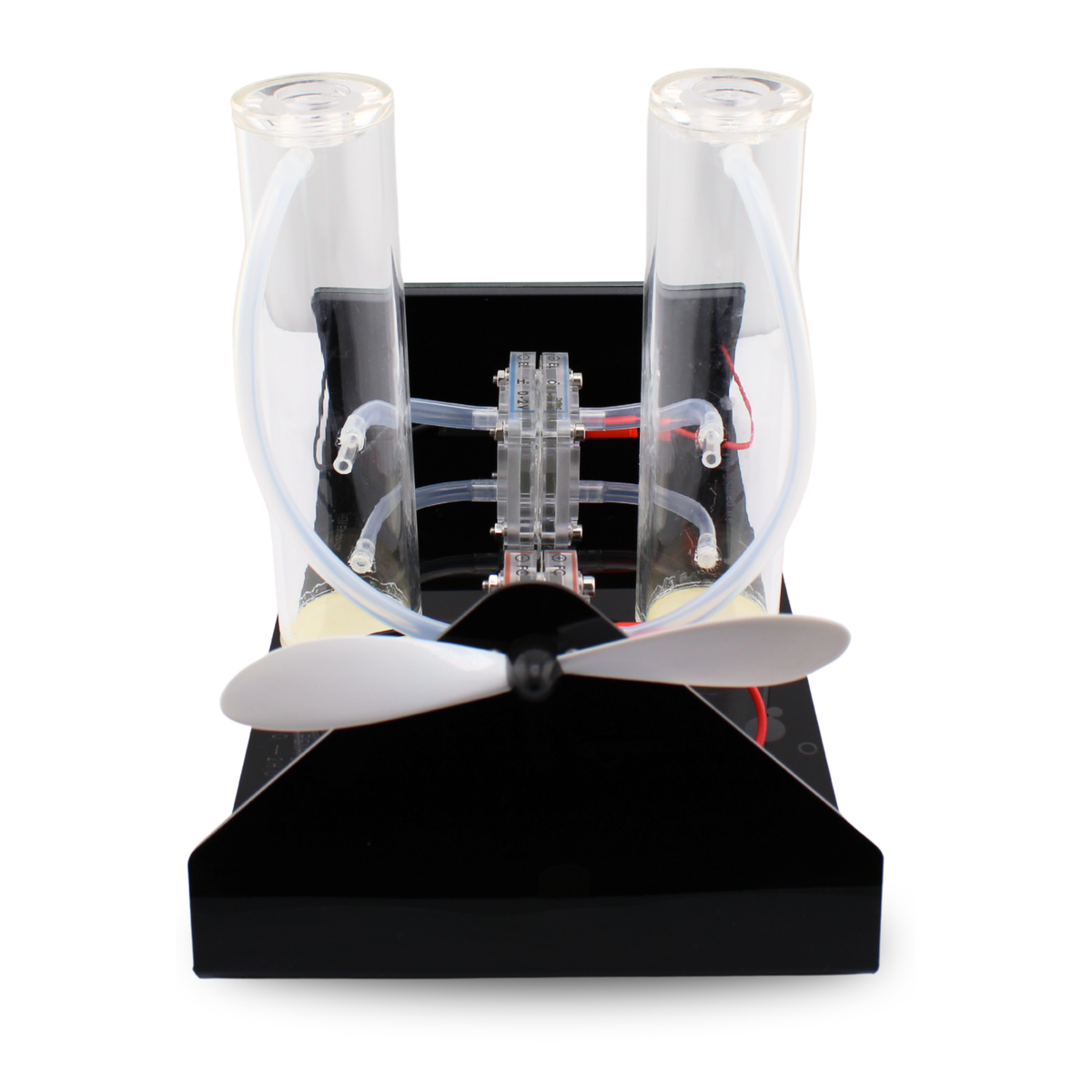

The Junior Pro is a Solar Hydrogen Experimentation System consisting of a solar module, PEM Electrolyzer, large hydrogen and oxygen storage tanks, PEM fuel cell, and fan (for electric load); mounted on a black base-plate, and textbook. The included H-TEC Education fuel cell textbook contains information about the technology and instructions for a variety of experiments.

The Junior Pro illustrates the simple elegance of the hydrogen cycle with a self-contained hydrogen system that is perfect for introducing the technology behind the solar hydrogen cycle, or for demonstrations.

Recommended Grades: 5 - 12

Includes:

• Single Electrolyzer
• Fuel Cell Hydrogen Oxygen

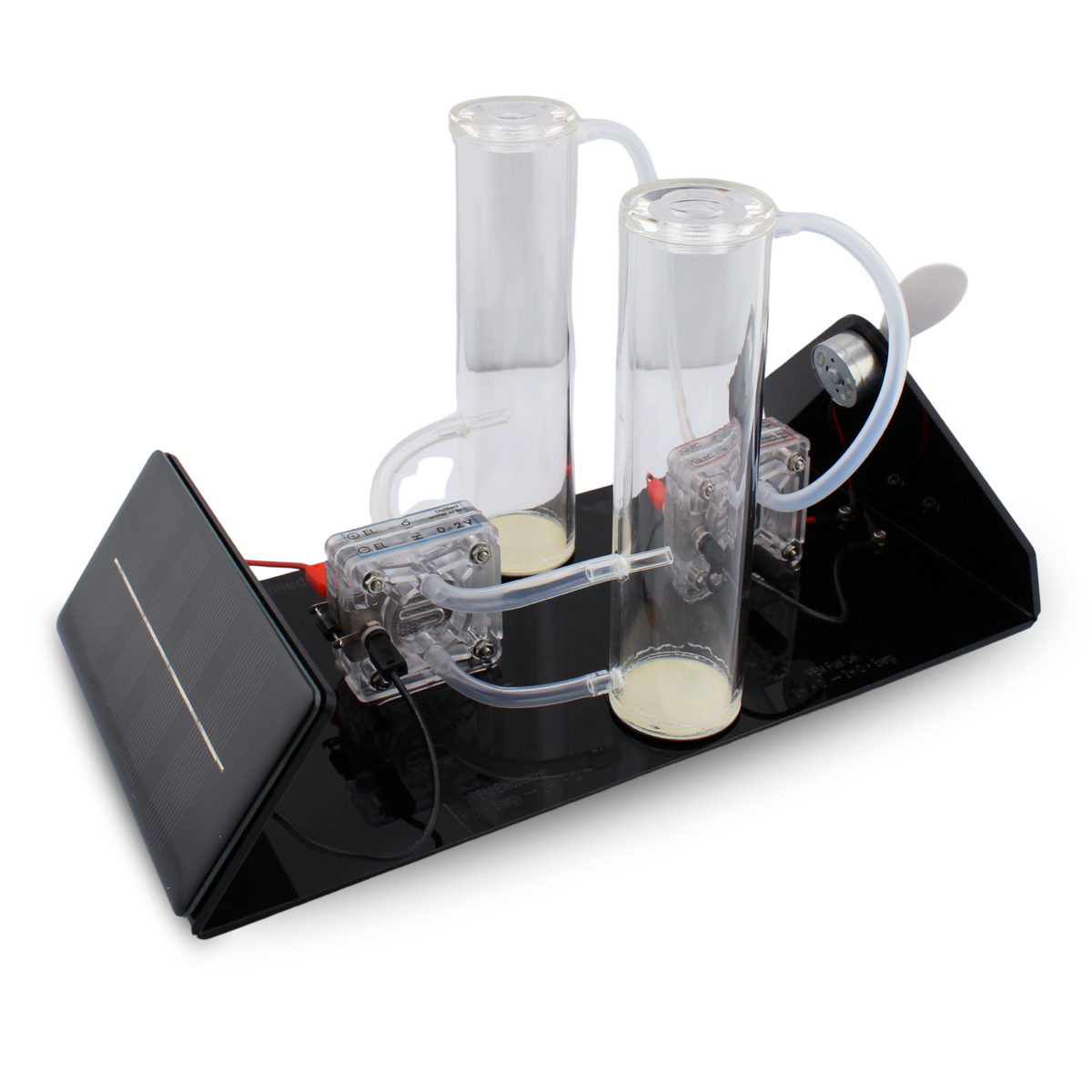

• Solar Panel Cell

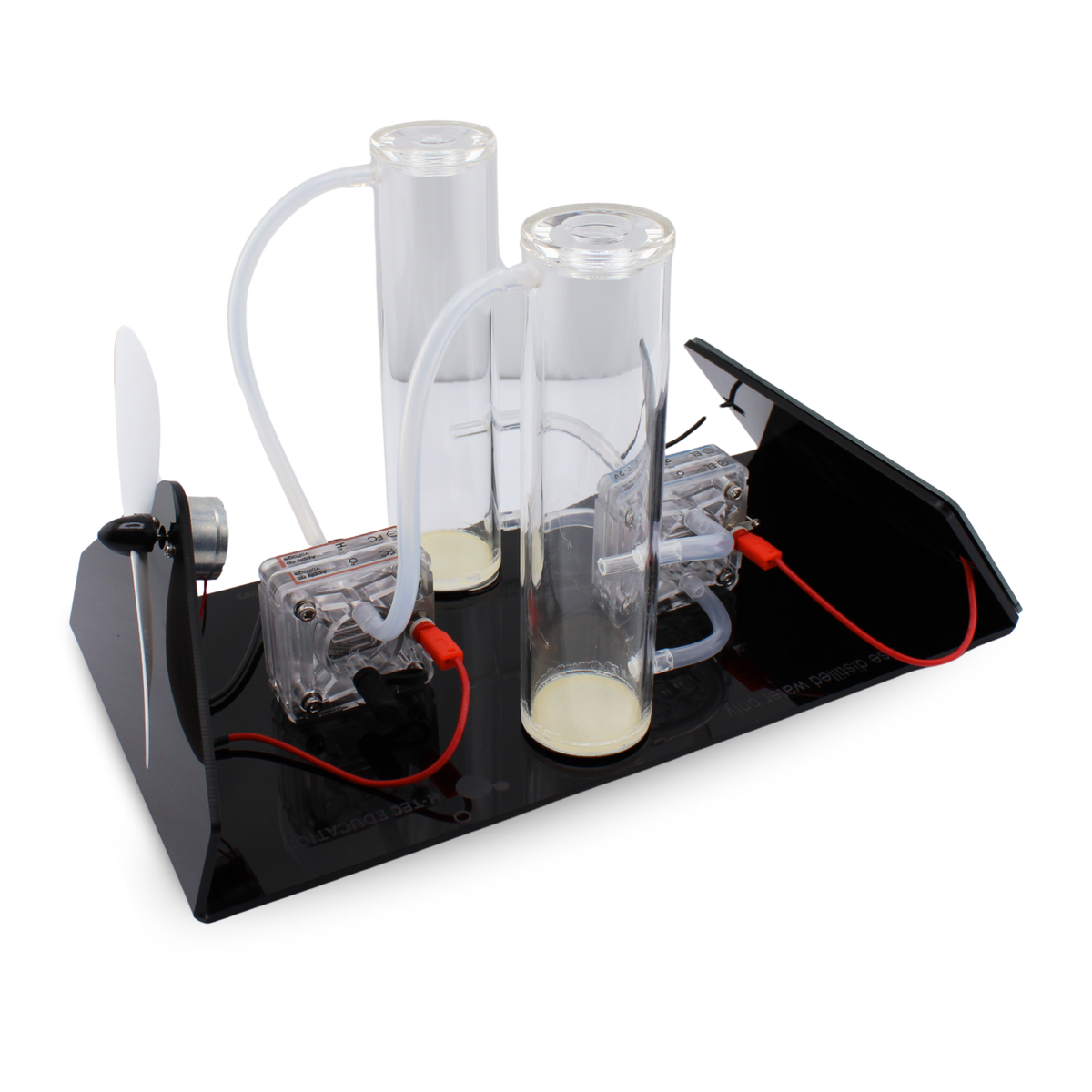

• Fan Load
• Acrylic Base Plate
• Larger Gas Storage Tanks with Magnetic Bases
• Instructional Textbook

Features:

• Compact system on one base-plate with larger gas storage tanks
• Clear, self-explanatory set-up
• Sturdy construction
• Short setup time

Experiments possible with the Junior Pro, J102:

• Producing and storing hydrogen and oxygen
• Determining the characteristic curve of a solar panel
• Operating the fuel cell with hydrogen and oxygen 2:1
• Determining the characteristic curve of an electrolyzer
• Determining electrolyzer efficiency
• Learning about Faraday’s laws
• Determining the characteristic curves of a fuel cell
• Determining fuel cell efficiency
• Determining the decomposition voltage of water
• For some experiments listed above, you will also need the Measurement Set.
