Junior Basic

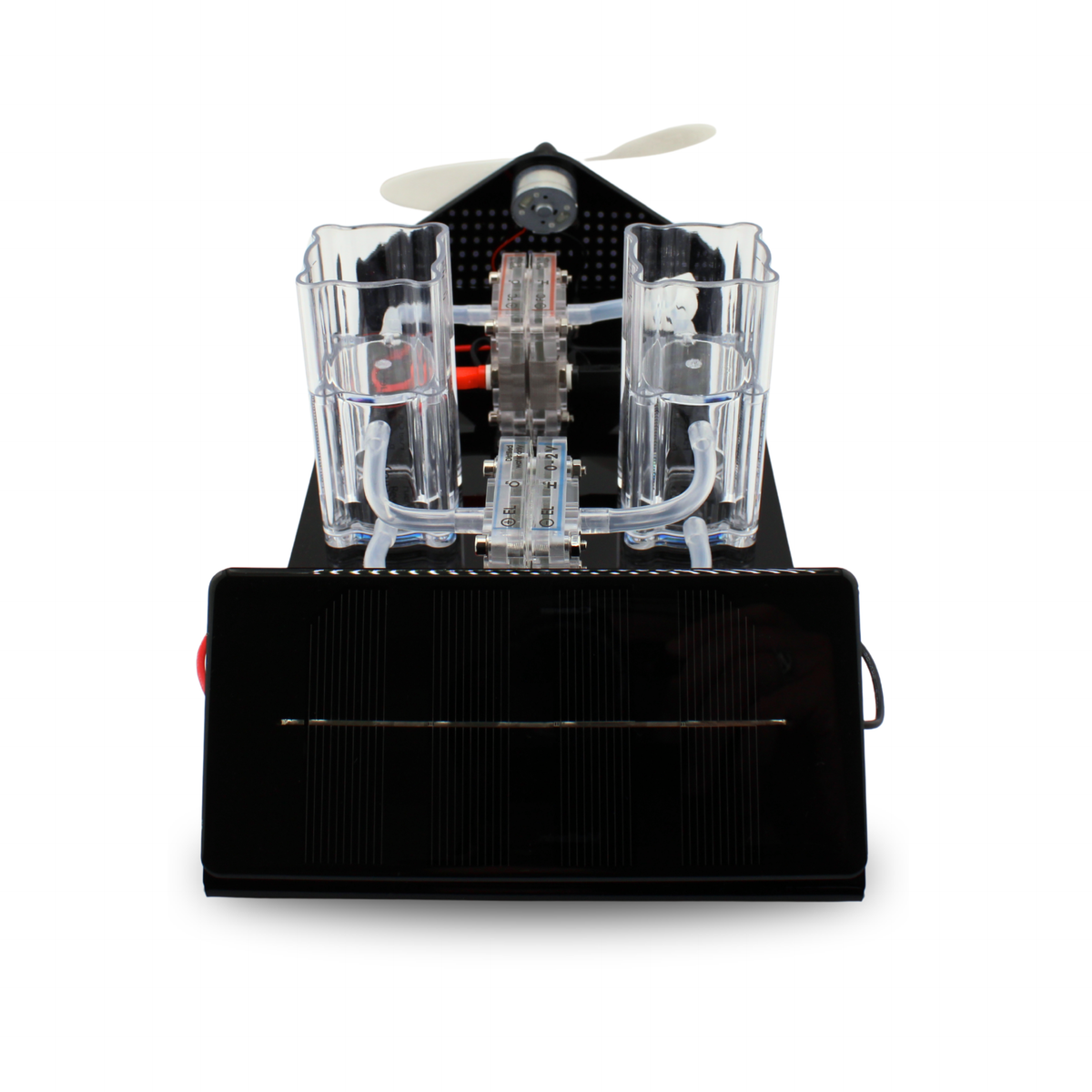

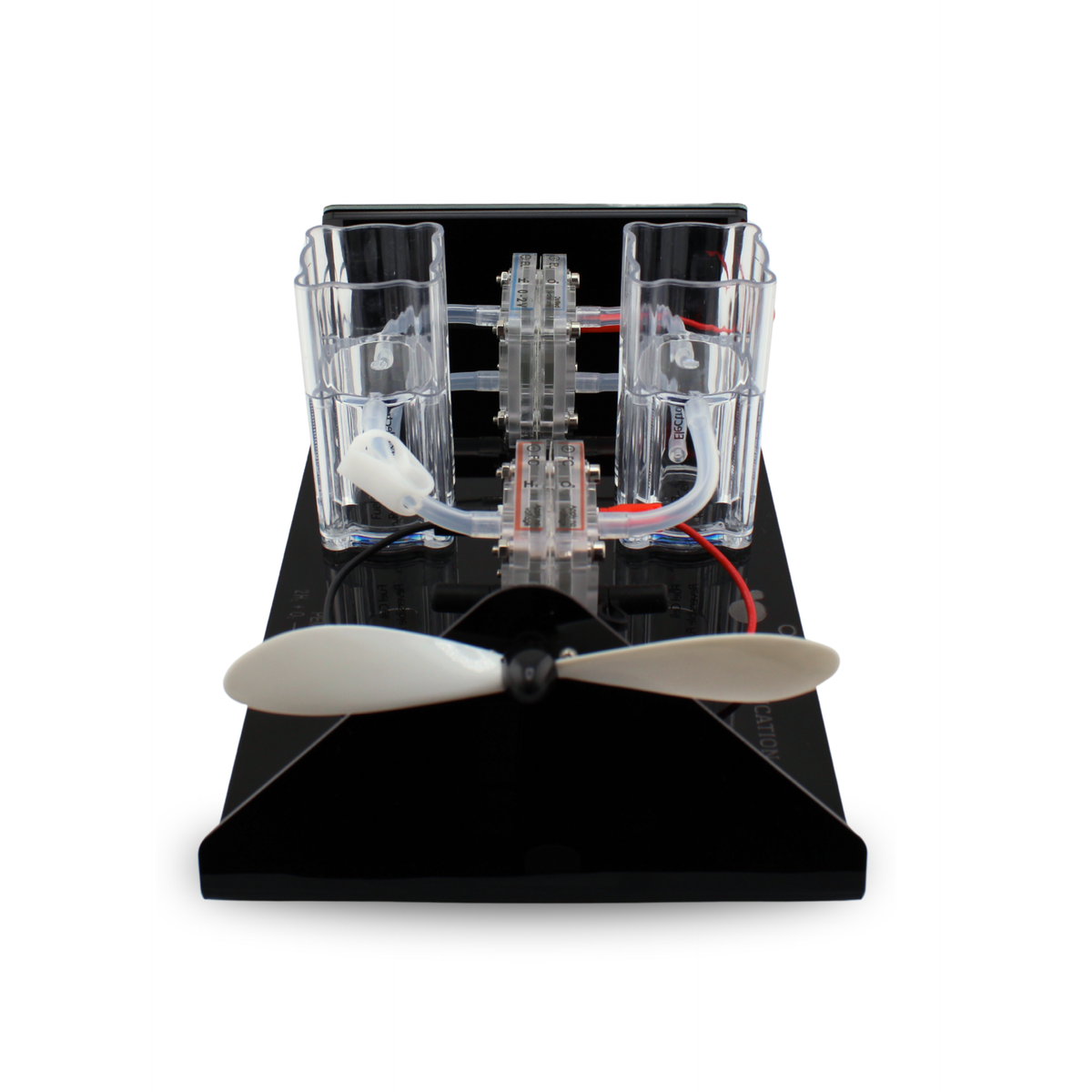

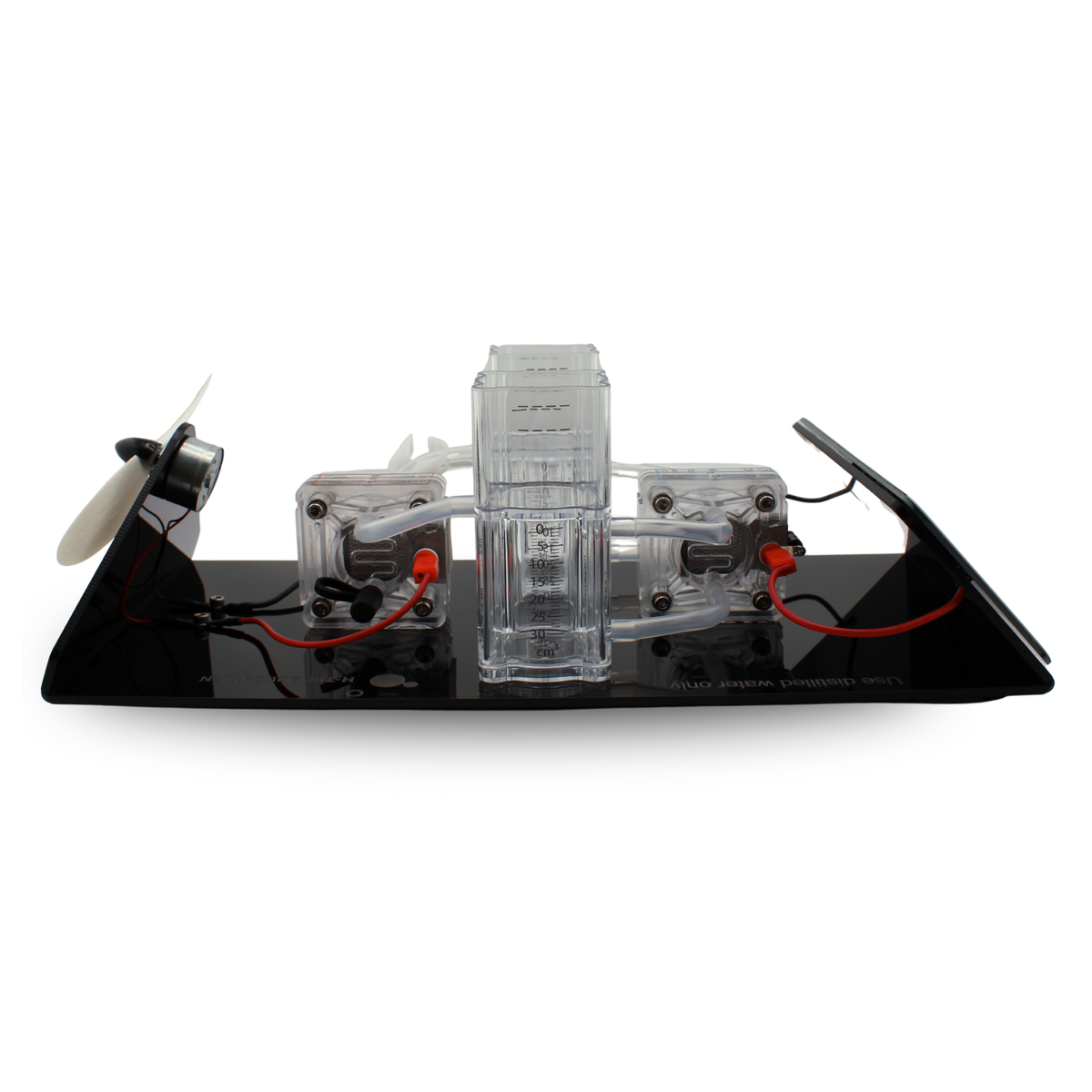

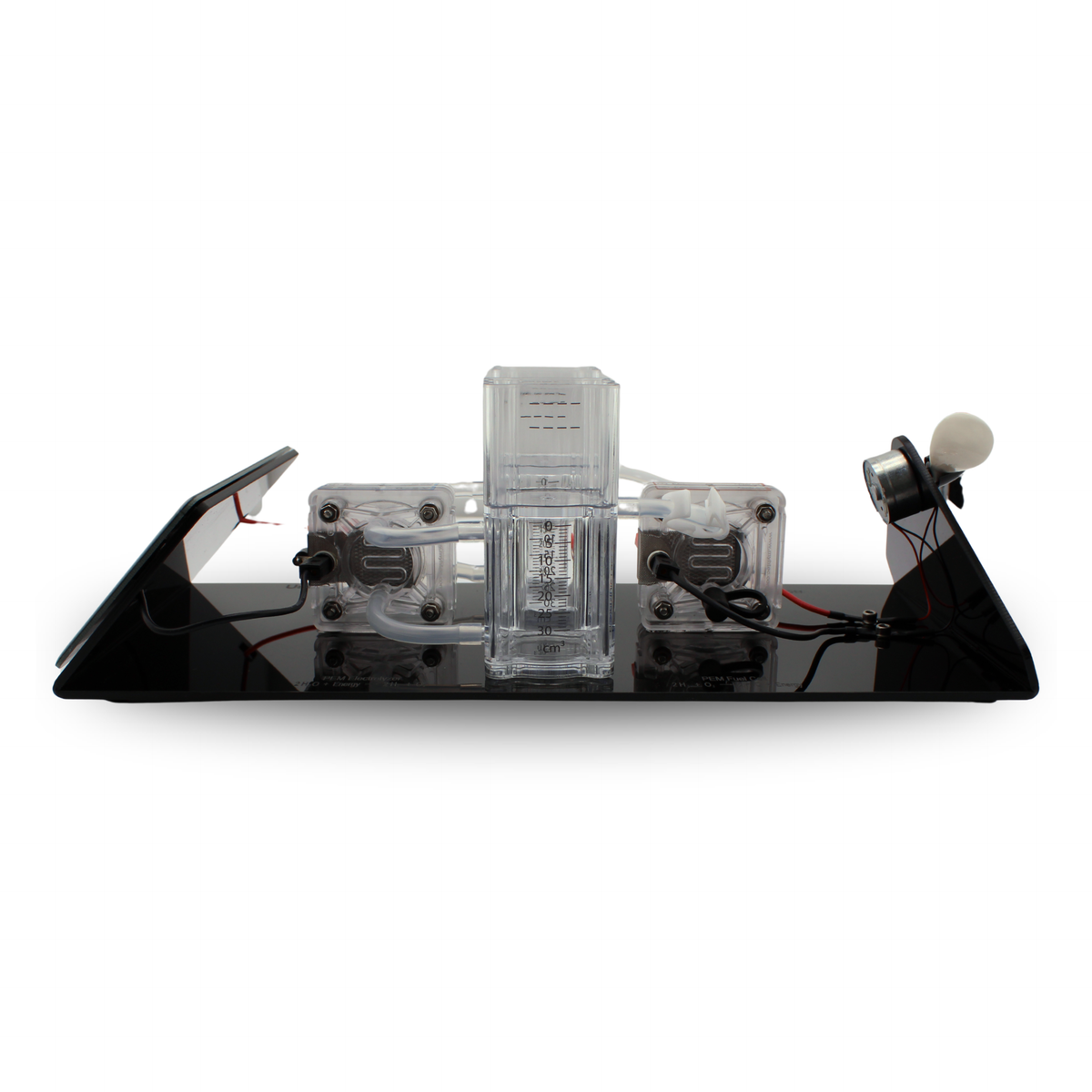

H-TEC's Junior Basic, J101, is aSolar Hydrogen Experimentation Systemconsisting of a solar module, PEM Electrolyzer, hydrogen and oxygen storage tanks, a PEM fuel cell, and a fan (for electric load); mounted on a black base plate, and a textbook. The included H-TEC Education fuel cell textbook contains information about the technology and instructions for a variety of experiments.

The Junior Basic illustrates the simple elegance of the hydrogen cycle with a self-contained hydrogen system that is perfect for introducing the technology behind the solar hydrogen cycle, or for small demonstrations.

Recommended Grades: 5 - 12

Includes:

• Single Electrolyzer
• Fuel Cell H2/O2

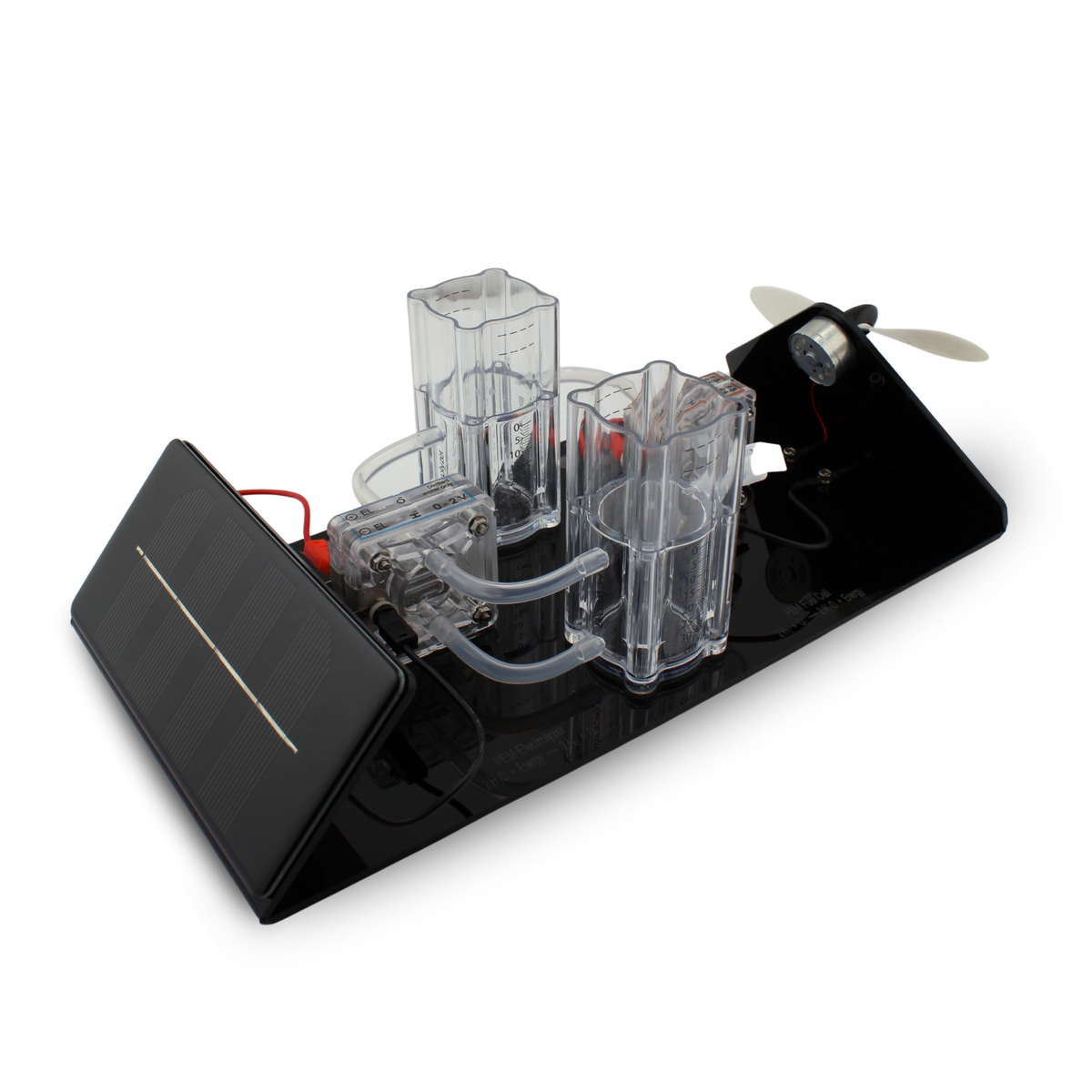

• Solar Panel Cell

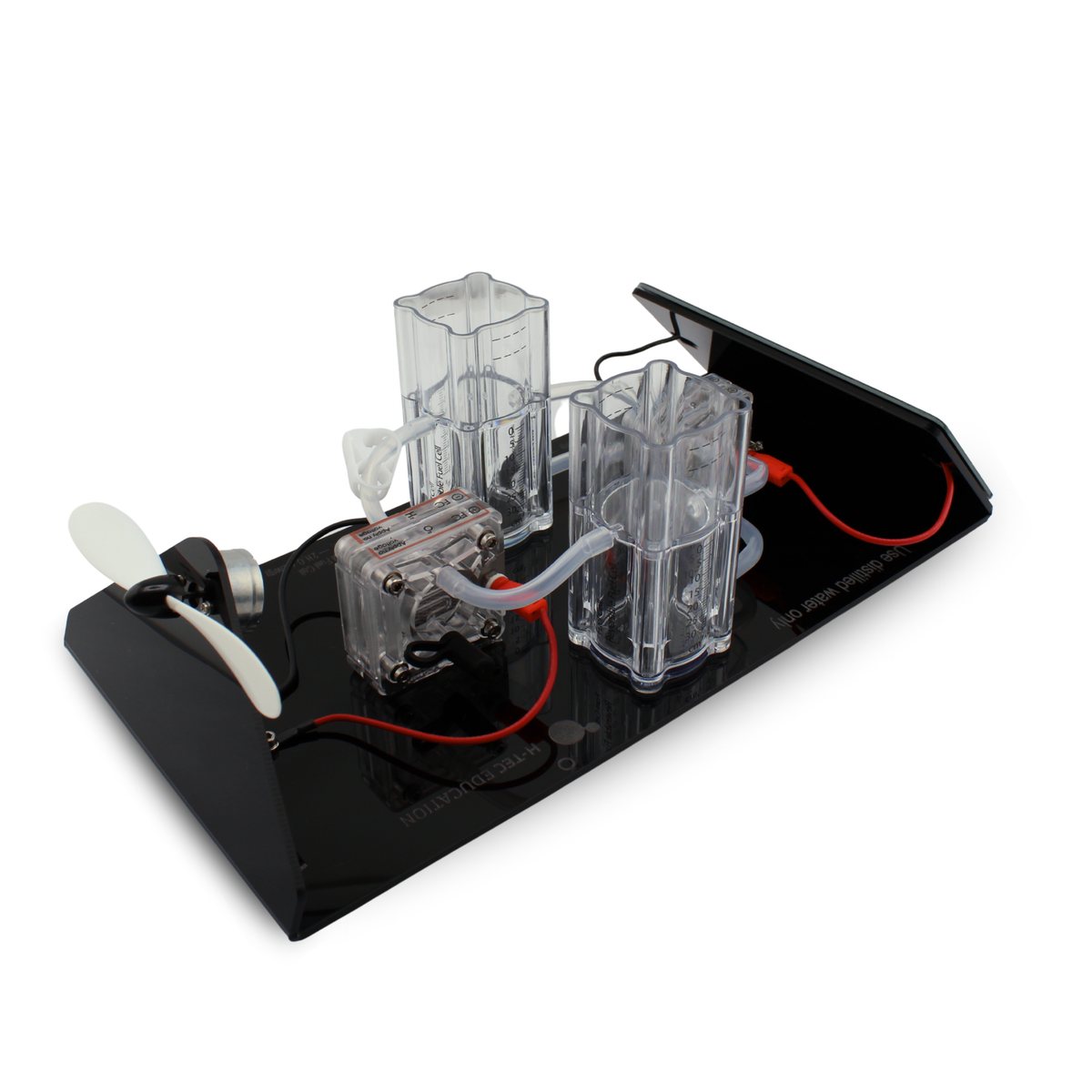

• Fan Load
• Acrylic Base Plate
• Instructional Textbook

Features:

• Compact system on one base-plate with larger gas storage tanks
• Clear, self-explanatory set-up
• Sturdy construction
• Short setup time

Experiments Possible with the Junior Basic, J101:

• Producing and storing hydrogen and oxygen
• Determining the characteristic curve of a solar panel
• Operating the fuel cell with hydrogen and oxygen 2:1
• Determining the characteristic curve of an electrolyzer
• Determining electrolyzer efficiency
• Learning about Faraday’s laws
• Determining characteristic curves of a fuel cell
• Determining fuel cell efficiency
• Determining the decomposition voltage of water
• For some experiments listed above, you will also need the Measurement Set.
