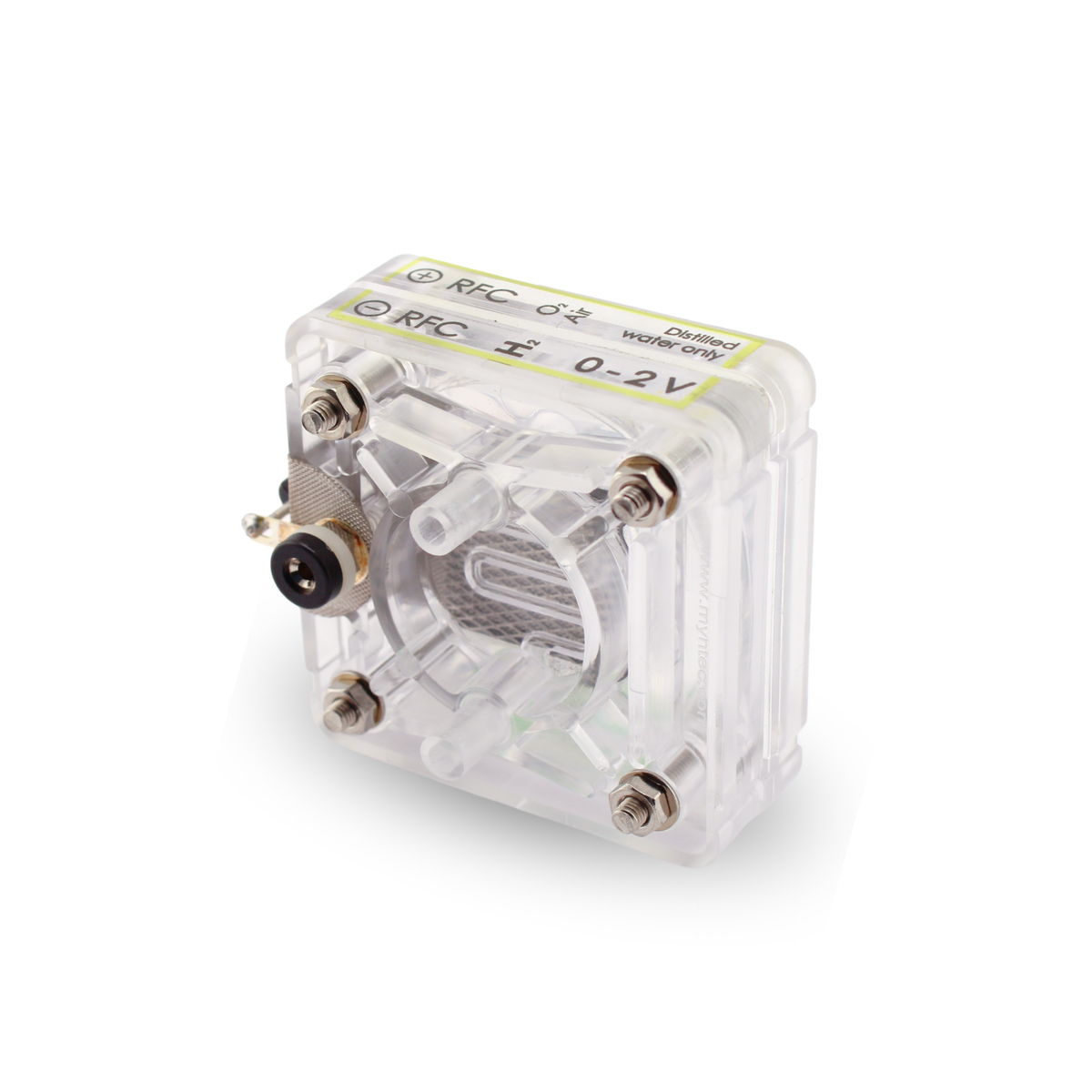

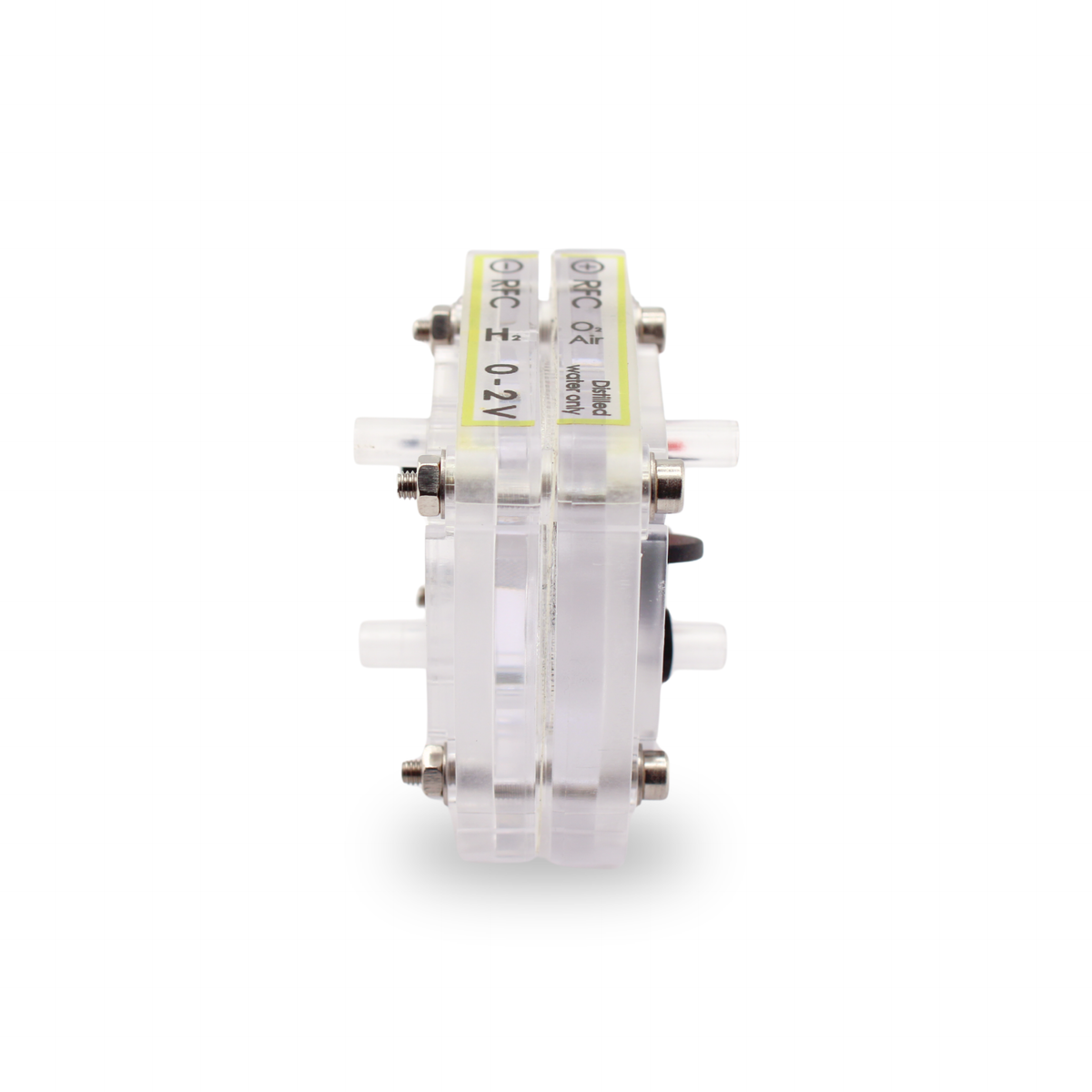

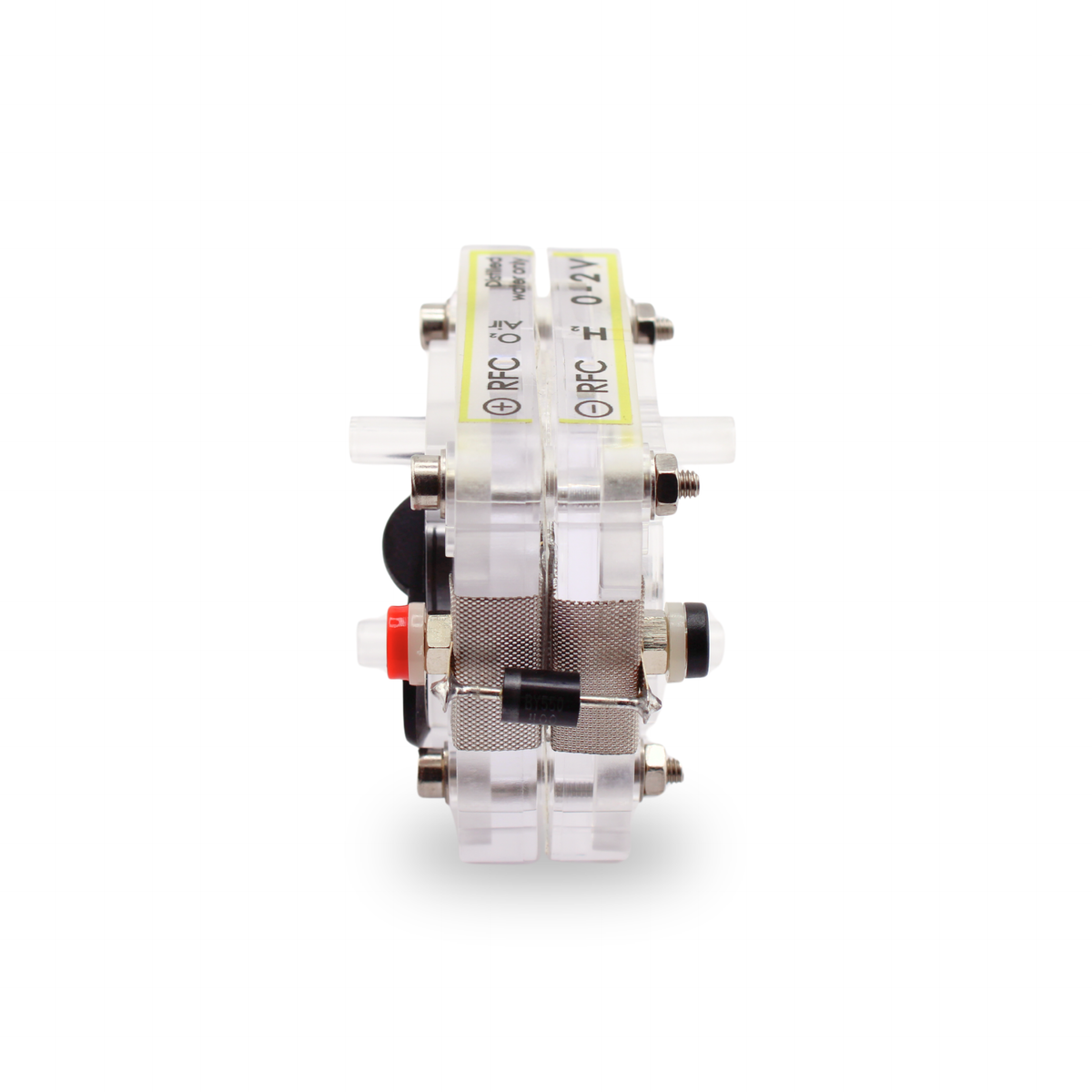

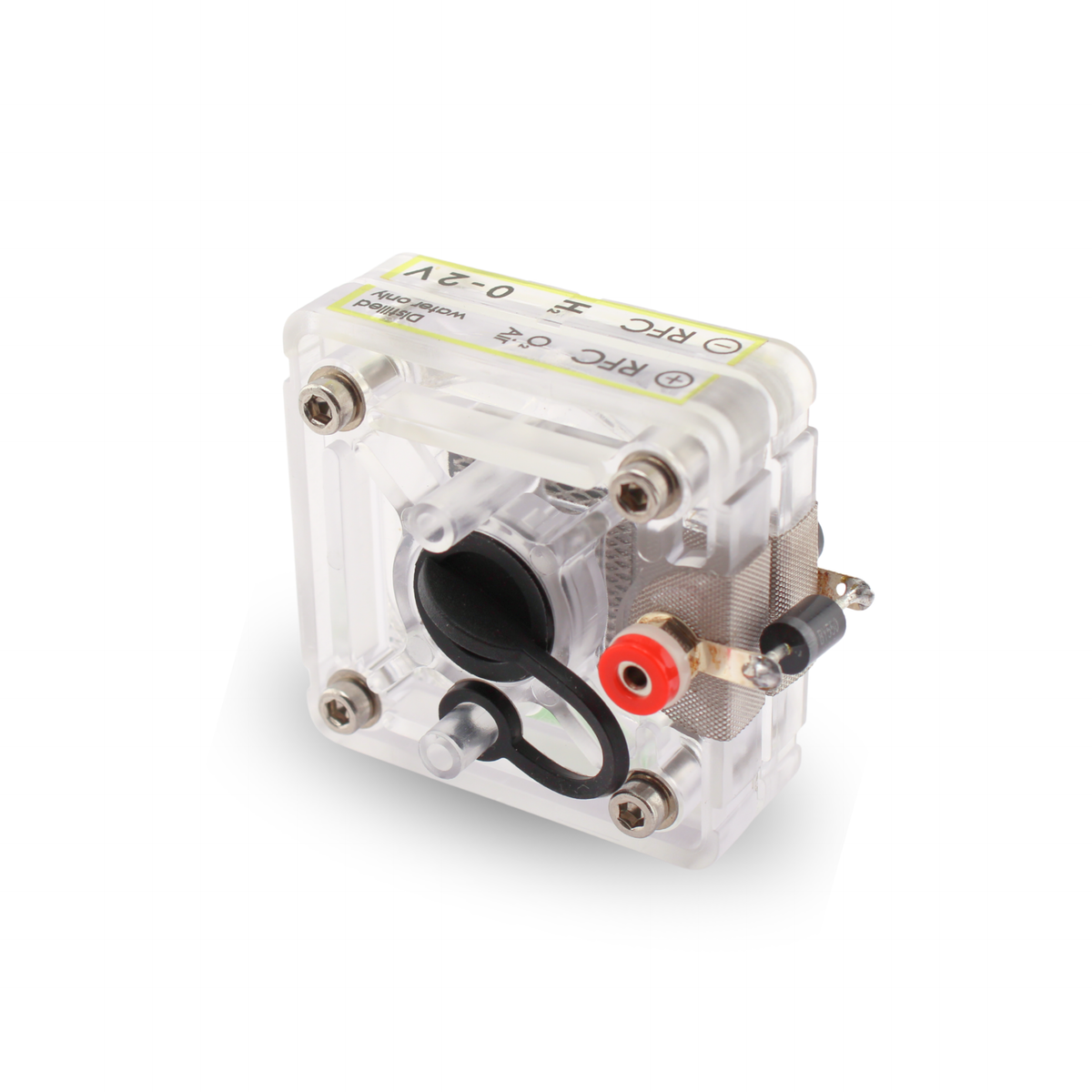

Reversible Fuel Cell H2/O2/Air
H-TEC's educational Reversible Fuel Cell (RFC) H2/O2/Air can be operated in three different modes: (1) Electrolyzer Mode - Uses external voltage to produce Hydrogen and Oxygen(2) H2/O2Fuel Cell Mode - Uses pure Hydrogen and Oxygen to produce electricity(3) H2/Air Fuel Cell Mode - Uses pure...
Key specs
| Item number | R103 |
|---|---|
| Technology | PEM |
| Cell count | 1 |
| Rated power | 0.5 W |
| H₂ rate | 7.0 cm³/min |
| Dimensions | 2" x 1.6" x 2.2" (50 x 40 x 57 mm) |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
H-TEC's educational Reversible Fuel Cell (RFC) H2/O2/Air can be operated in three different modes:
(1) Electrolyzer Mode - Uses external voltage to produce Hydrogen and Oxygen
(2) H2/O2Fuel Cell Mode - Uses pure Hydrogen and Oxygen to produce electricity
(3) H2/Air Fuel Cell Mode - Uses pure Hydrogen and Atmospheric Oxygen (also known as air) to produce electricity
The RFC H2/O2/Air can work in either electrolysis or fuel cell mode. As an electrolyzer, it uses an external voltage to break down water into hydrogen and oxygen. As a fuel cell, it produces electricity by using hydrogen and oxygen gas (or atmospheric oxygen, also known as air).
Reversible Fuel Cell (RFC) H2/O2/Air, R103 - Technical Specifications:
- Hydrogen Production in Electrolyzer Mode: 7 mL/min
- Oxygen Production in Electrolyzer Mode: 3.5 mL/min
- Power in Fuel Cell H2/O2Mode: 500 mW @ 750 mA
- Power in Fuel Cell H2/Air Mode: 200 mW @ 300 mA
- Dimensions (H x W x D): 2" x 1.6" x 2.2" (50 x 40 x 57 mm)
- Weight: 1.8 oz (52 g)
Specifications
| Item number | R103 |
|---|---|
| Type | Fuel cell |
| Technology | PEM |
| Cell count | 1 |
| Rated power | 0.5 W |
| H₂ rate | 7.0 cm³/min |
| O₂ rate | 3.5 cm³/min |
| Dimensions | 2" x 1.6" x 2.2" (50 x 40 x 57 mm) |
| Operating modes | H2/O2, H2/Air, reversible |
