Tutorial HyRunner Kit
The Tutorial HyRunner Kit by H-TEC helps you explore the innovative world of hydrogen-powered vehicle/car models. The kit is equipped with a Reversible PEM Fuel Cell to combine hydrogen and oxygen and produce electrical energy to power the motor. The hydrogen is supplied from a...
Key specs
| Item number | T207 |
|---|---|
| Grades | 5–12 |
| Technology | PEM |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description

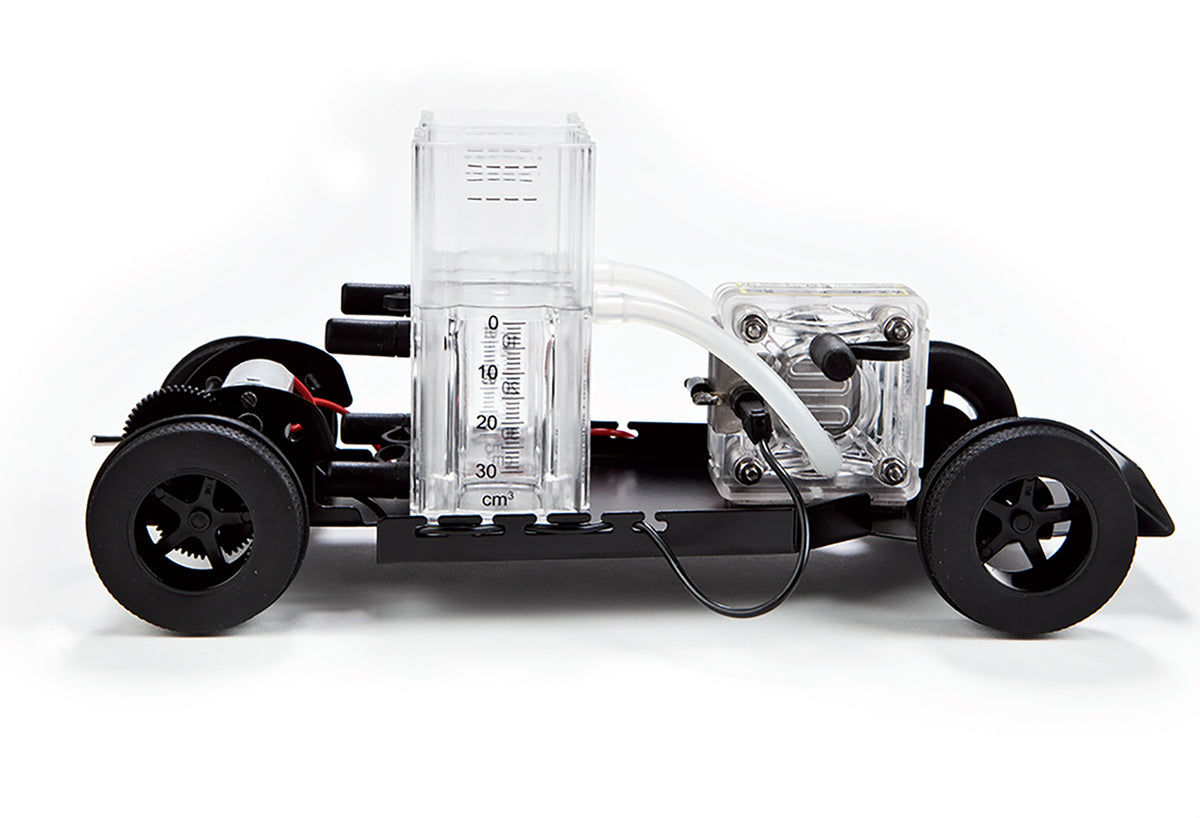

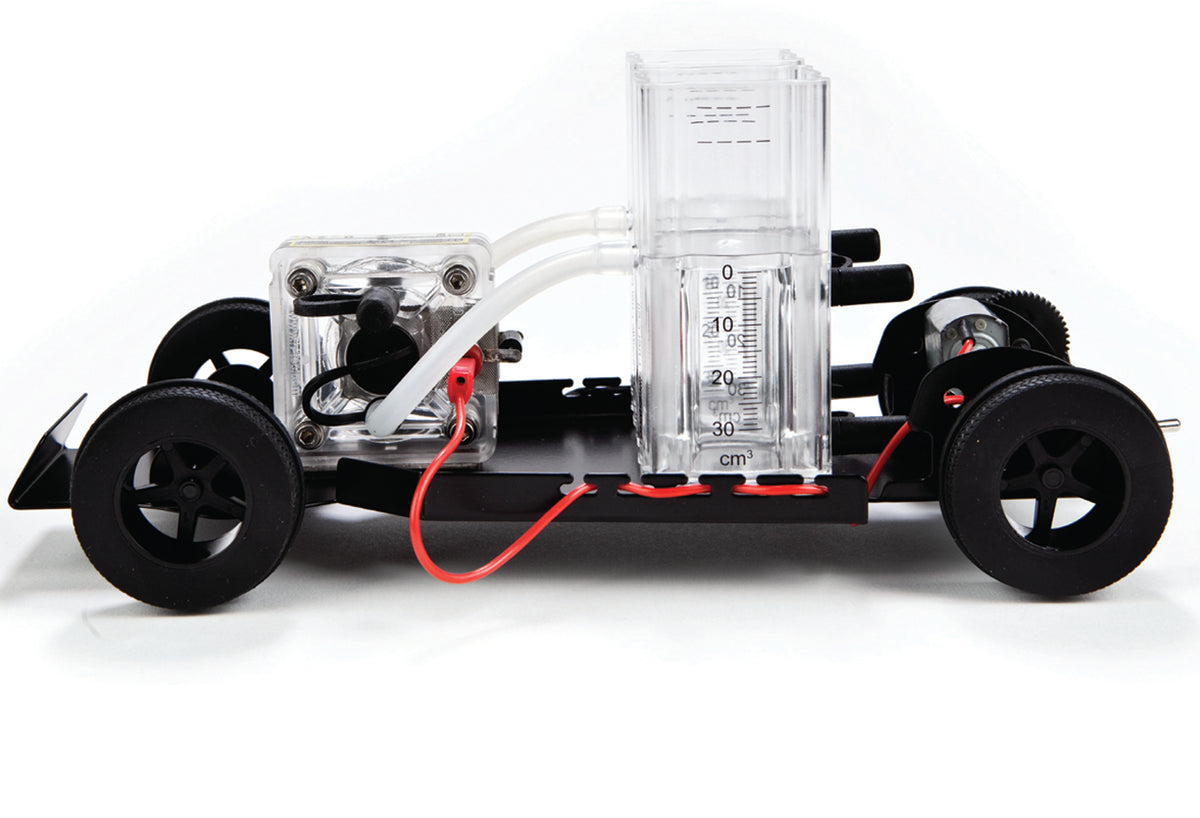

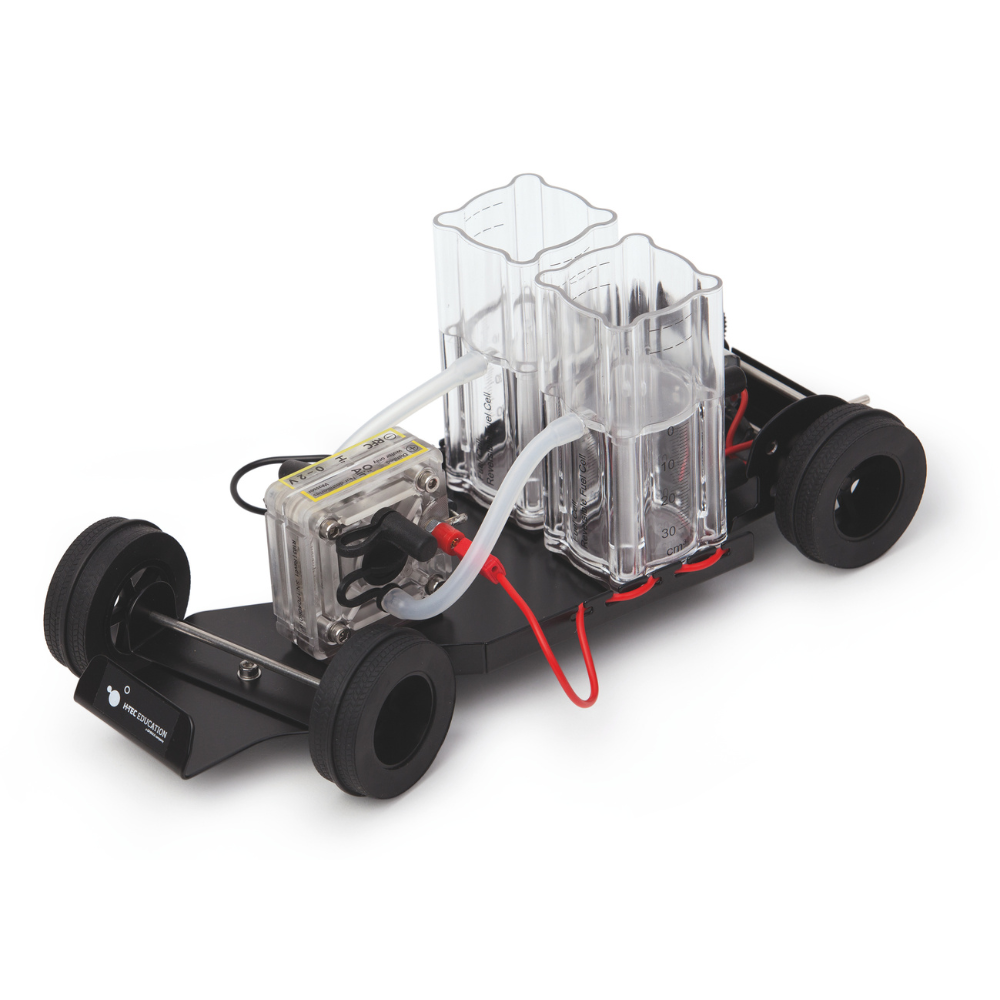

The Tutorial HyRunner Kit by H-TEC helps you explore the innovative world of hydrogen-powered vehicle/car models. The kit is equipped with a Reversible PEM Fuel Cell to combine hydrogen and oxygen and produce electrical energy to power the motor. The hydrogen is supplied from a solar hydrogen gas station where the reversible fuel cell is run in electrolysis mode (in combination with the Solar Panel and deionized water) and splits water into hydrogen and oxygen. The gases are then stored for use in the storage cylinders, where they are later transferred to the car and supplied back into the reversible fuel cell so it can be run in fuel cell mode to power the car!
About the Reversible Fuel Cell In The HyRunner Kit:
The Reversible H2/O2/Air Fuel Cell included in the HyRunner Kit can be operated in three different modes:
(1) Electrolyzer Mode - Uses external voltage to produce Hydrogen and Oxygen
(2) H2/O2 Fuel Cell Mode - Uses pure Hydrogen and Oxygen to produce electricity
(3) H2/Air Fuel Cell Mode - Uses pure Hydrogen and Atmospheric Oxygen (also known as air) to produce electricity
The Reversible Fuel Cell (RFC) can work in either electrolysis or fuel cell mode. As an electrolyzer, it uses an external voltage to break down water into hydrogen and oxygen. As a fuel cell, it produces electricity by using hydrogen and oxygen gas (or atmospheric oxygen, also known as air).
Recommended Grades: 5–12
The typical running time of the Tutorial HyRunner is 8 minutes. Charging time:
• Solar Module Tutorial (under sunlight): 9 minutes

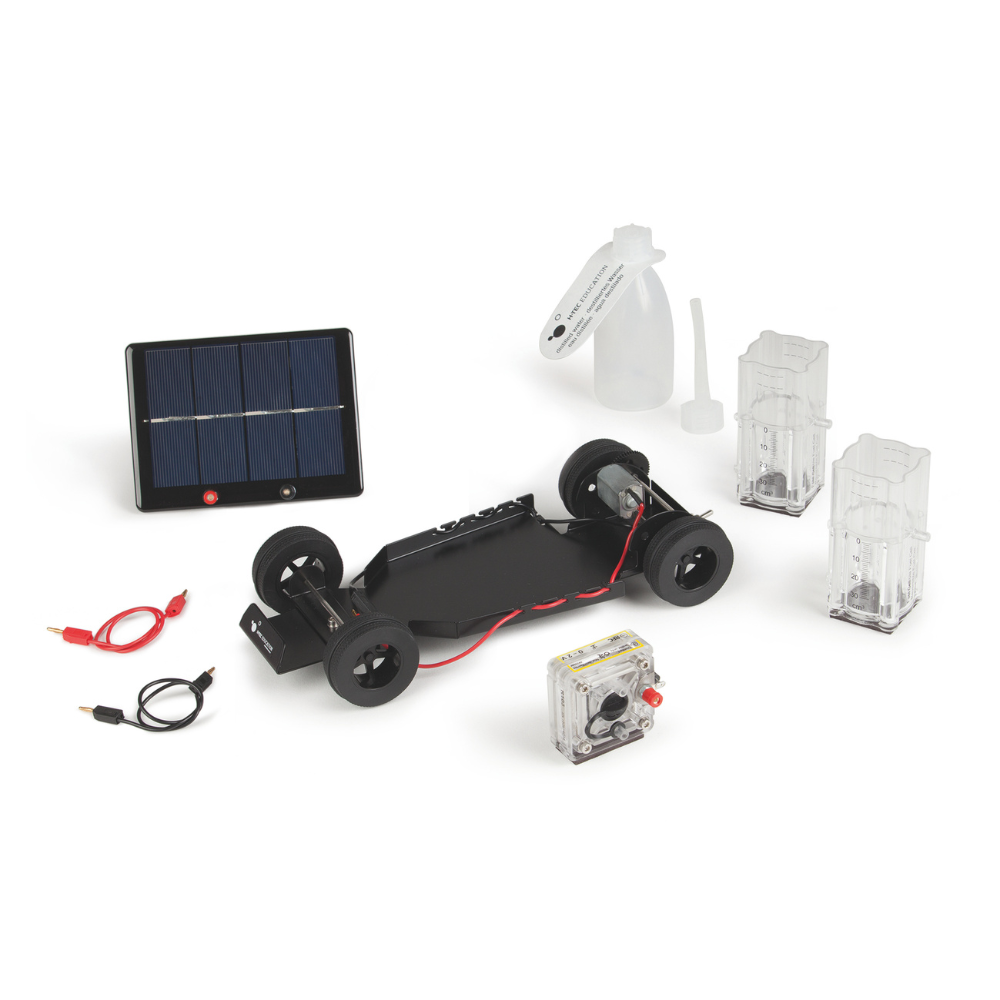

Tutorial HyRunner Includes:
- Reversible Fuel Cell Hydrogen / Oxygen / Air
- 2x Storage 30
- Solar Module Tutorial
- Vehicle Plate and accessories
- Fuel Cell Technology Book for Classroom Instruction
Experiments possible with Tutorial HyRunner, T207:
- Building a model hydrogen car
- Producing and storing hydrogen
- Determining the characteristic curve of a solar panel
- Hydrogen/oxygen or hydrogen/air operation
- Determining the characteristic curve of an electrolyzer
- Determining electrolyzer efficiency
- Learning about Faraday’s laws
- Determining the characteristic curves of a fuel cell
- Determining fuel cell efficiency
- Determining the decomposition voltage of water
For some experiments listed above, you will also need the Measurement Set 1 (A129).
Specifications
| Item number | T207 |
|---|---|
| Type | Kit |
| Series | Tutorial |
| Level | High school |
| Grades | 5–12 |
| Technology | PEM |
| Operating modes | H2/O2, H2/Air, reversible |
| Power source | solar, lab PSU |
