Tutorial Pro

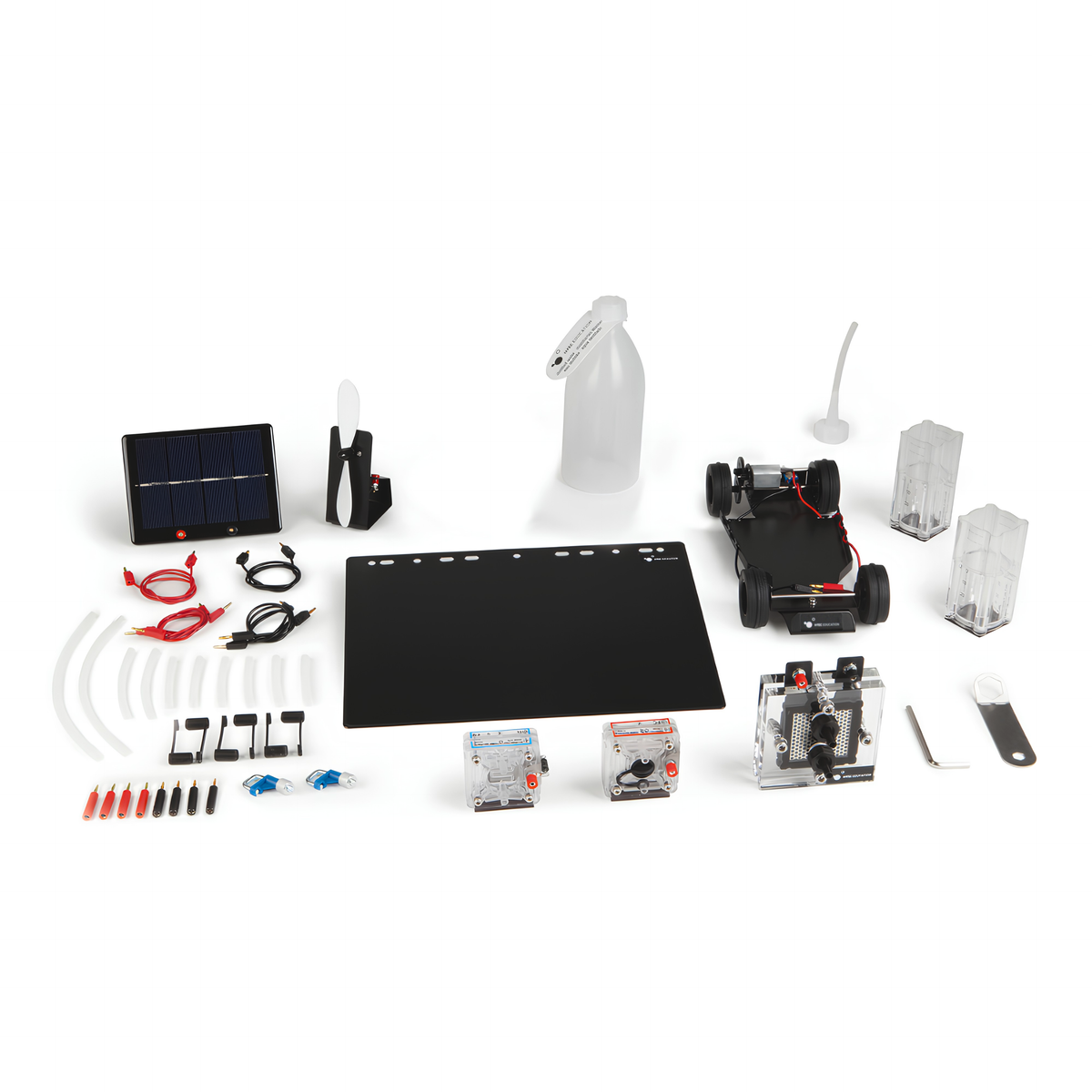

H-TEC's Tutorial Pro, T203, is a more extensive kit than the Junior Basic or Tutorial Basic that allows experiments across a wide range of hydrogen applications, including automotive applications. This kit consists of individual components, such as a solar module, PEM electrolyzer, hydrogen and oxygen storage tanks, PEM fuel cell, PEMFC kit, and fan (for electric load); each with a magnetic base for modular arrangement on a base plate and textbook. The included H-TEC Education fuel cell textbook contains information about the technology and instructions for a variety of experiments.

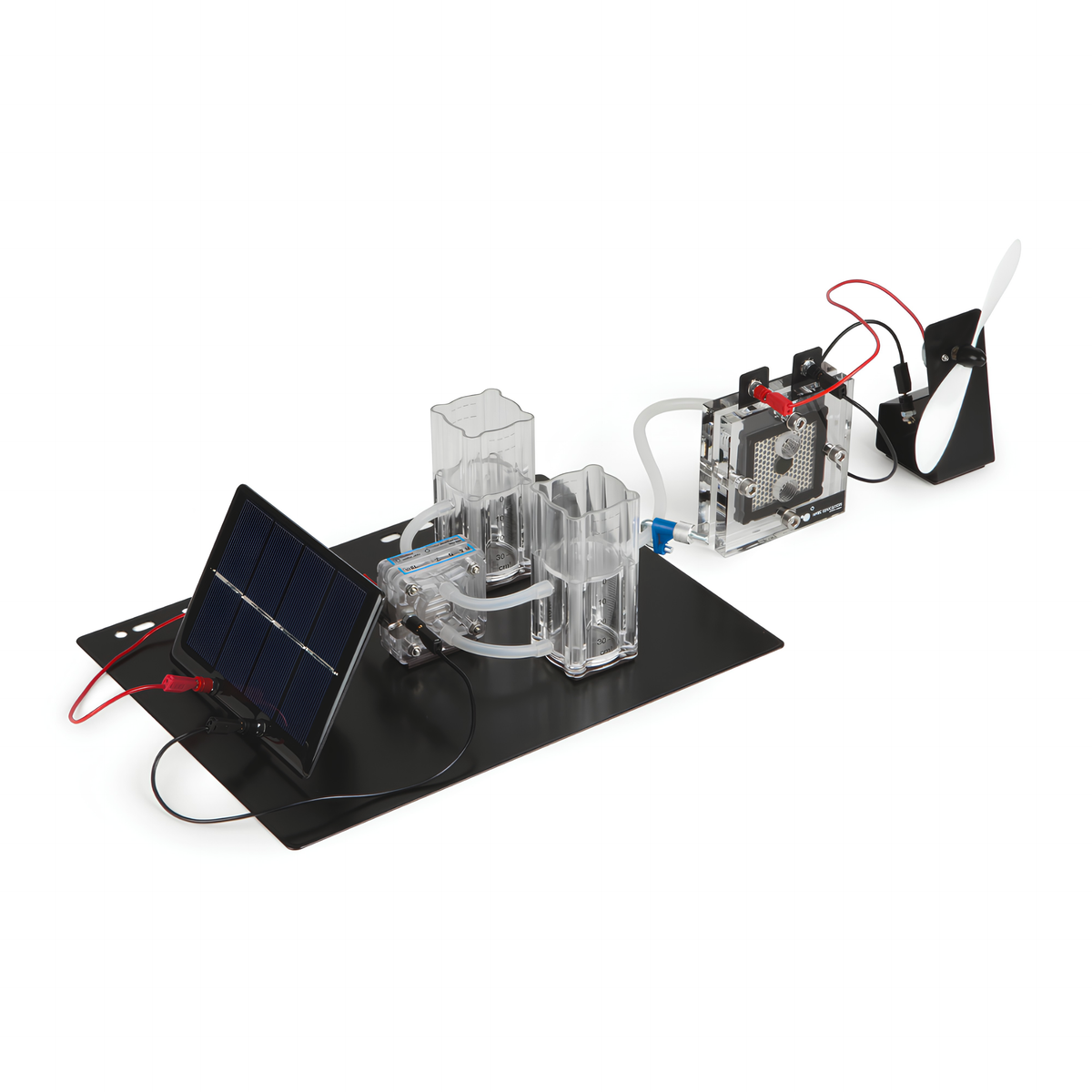

The Tutorial Pro allows you to run solar experiments to power the electrolyzer and collect the generated hydrogen and oxygen gases in the storage tanks. Then, you can use the gases for the PEM fuel cell to generate power for either the H2/O2 or H2/Air mode. This kit also provides the opportunity to build a self-contained solar hydrogen system or fill up a hydrogen-powered model car with its own solar hydrogen station.

Recommended Grades: 5 - 12

Features:

• Compact system on one base-plate
• Clear, self-explanatory set-up
• Sturdy construction
• Short setup time

Includes:

• Single Electrolyzer (E103)
• x2 Storage 30
• Fuel Cell Hydrogen / Oxygen / Air
• PEMFC Kit
• Holder Set
• Vehicle Plate
• Solar Module Tutorial
• Fan Tutorial
• Banana Plug Cables
• Metal Base Plate
• Instructional Textbook

Experiments possible with Tutorial Pro, T203:

• Producing and storing hydrogen and oxygen
• Determining a solar module's characteristic curves
• Hydrogen / Oxygen or Hydrogen / Air fuel cell operation
• Determining the characteristic curve of an electrolyzer
• Determining electrolyzer efficiency
• Learning about Faraday’s laws
• Determining the characteristic curves of a PEM fuel cell
• Determining fuel cell efficiency
• Determining the decomposition voltage of water
• Building a hydrogen model car
