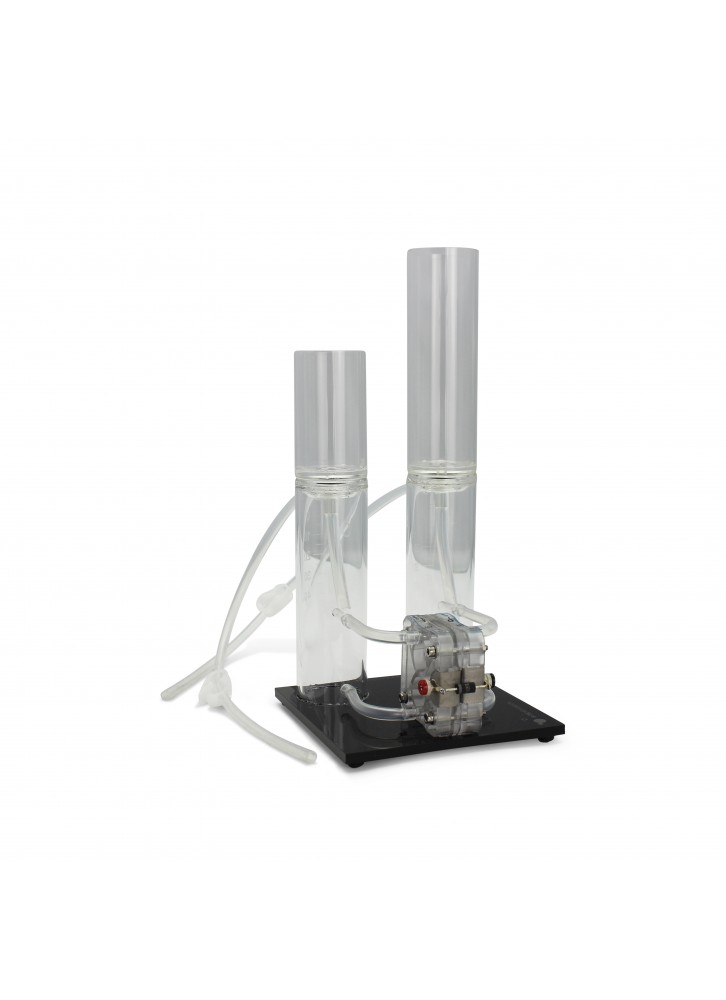

The Quattro Electrolyzer Kit is a Quattro-Cell PEM Electrolyzer with water tanks, hydrogen and oxygen storage tanks.  The Quattro Electrolyzer Kit produces and stores hydrogen and oxygen simply by adding de-ionized water and an electric load.

The electrolyzer provided in this set is maintenance-free.  However, always remember to use fresh, distilled water each time and to drain the water from the storage tanks after use.

• Hydrogen Production Rate: 40 cm³/min @ 1.5A
• Oxygen Production Rate: 20 cm³/min @ 1.5A
• Maximum Permissible Voltage: 4VDC
• Power Needed: 8 W
• Hydrogen Gas Storage: 80cm³
• Oxygen Gas Storage: 80cm³
• Dimensions (H x W x D): 3.5" x 6.7" x 5.3" (90 x 170 x 135 mm)
• Weight: 10.2 oz (290 g)

The growing significance of PEM electrolyzers mirrors the development of fuel cells. Electrolyzers generate the hydrogen required by fuel cells from water in an environmentally conscious manner.  The electrical energy required for this purpose can be gained from renewable sources such as solar cells, wind farms or hydroelectric plants.

Water reacts in the electrolyzer under the influence of electrical energy according to the following formula: 2H₂O = 2H₂ + O₂.  This process takes place in the MEA (membrane electrode assembly).  The MEA consists of the cathode, the anode, and a special polymer membrane (PEM) which is permeable to protons but which presents a barrier to electrons.  Your h-tec electrolyzer functions on the PEM principle.  The gases produced can be collected in storage tanks (H-TEC Storage 30 or Horizon 30mL Cylinders).  The energy stored in chemical form in the gases can be converted back to electrical energy in a fuel cell as and when required.
